Netstor Technology

NP631N

M.2 NVMe to PCIe Host Adapter

Overview

Convert M.2 NVMe SSD to PCIe Architecture

Netstor NP631N is a PCIe 3.0 x4 add-in card for your innovative, contemporary computer, which provides M.2 achievement up to a blistering 32 Gbps performance, fitting in any PCIe x4, x8, and x16 slot within host to bring an enterprise-class PC/workstation build scheme.

Adds Maximum Flexibility to Selection

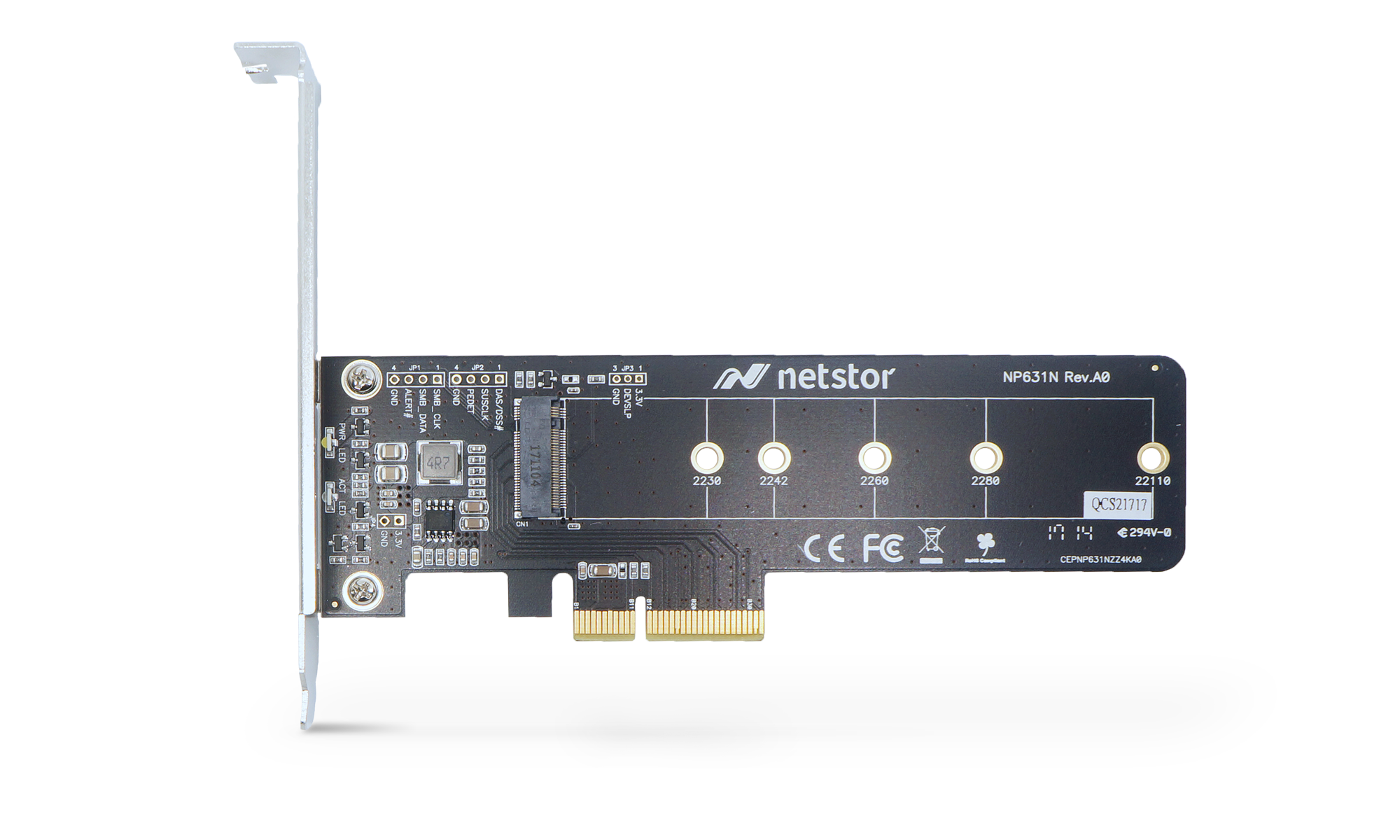

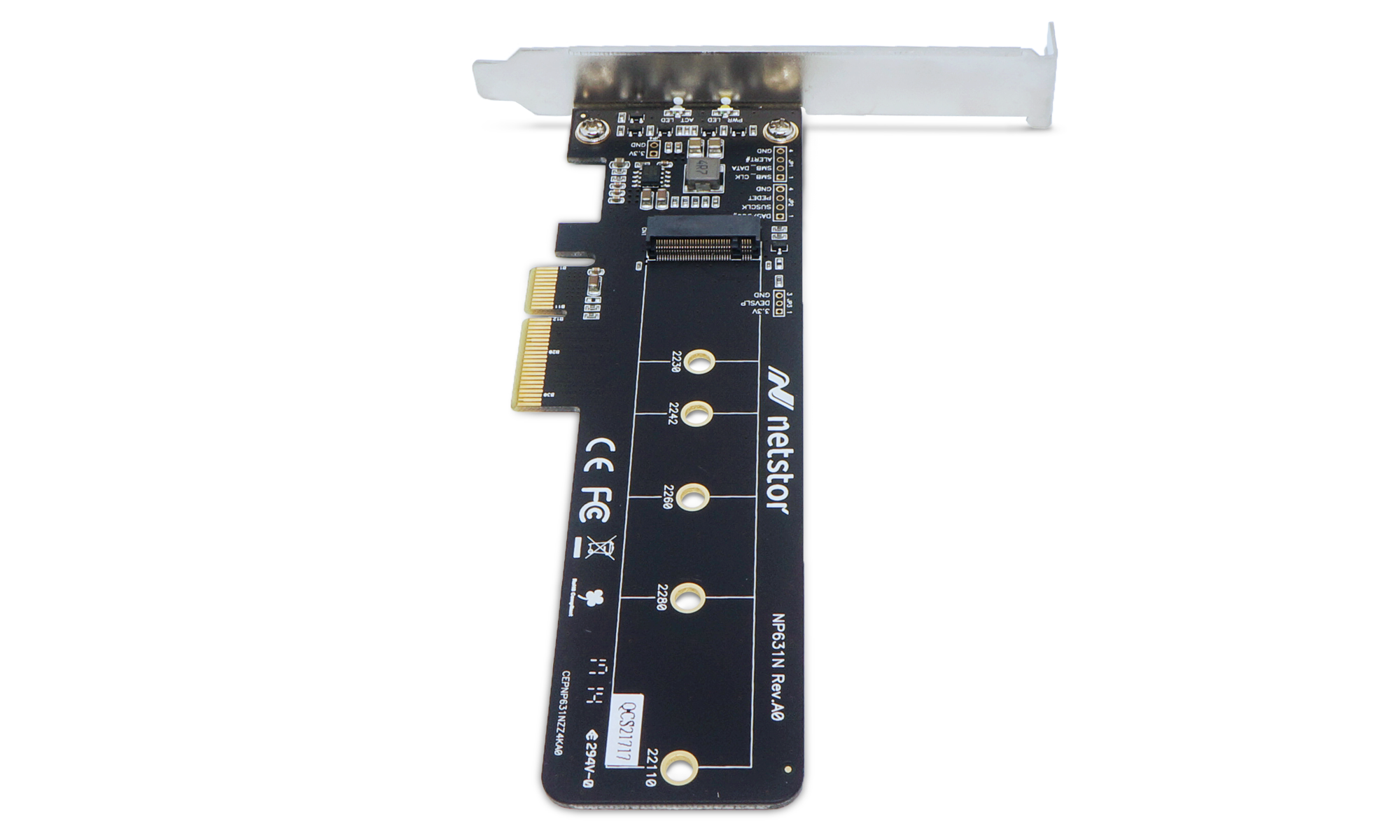

The movable M.2 stand-off and multiple plated-holes do support all the up-to-date types of M.2 SSD cards including 2230 (30 mm), 2242, 2260, 2280, and full-length 22110 (110 mm) to make all existing standard available to users.

The Finest Power Delivery Ever Guaranteed

Premium, superior high-quality DC-to-DC controller and inductor are implemented to allow the delivering of even-finer power and ensure the M.2 adapter always transfers the precise and smoothest voltages within PCB and to the M.2 SSD.

Note: ±2% regulation, low ripple and low noise performance for best, highest stability.

Lightning-Fast Performance Ever

With all the present-day M.2 NVMe PCIe SSD attached to NP631N adapter to be installed on PC motherboard, the performance is just as fast as sufficient for your everyday work.

‧ M.2 NVMe PCIe SSD is sold separately.
‧ Performance may vary based on system hardware & configuration.

Industry's First Instant Status Display

Thoughtfully designed with power and activity bracket-side LED indicators to let users always know the status of M.2 adapter and M.2 PCIe NVMe SSD without any difficulty.

Specs

Specifications

	NP631N
Host Interface	PCI Express 3.0 x4 interface (Compatible with PCI Express x8, and x16 slots)
Data Transfer Rate	32Gbps
NVMe Interface	1 x M.2 x4 M key (M.2 NGFF)
NVMe Type	Supports 2230/2242/2260/2280/22110 PCIE SSD
Power Supply	3.3V@ 3A for M.2 NVMe SSD
LED Display	White – Power On Indicator Flash Blue – Data Accessing Indicator
Dimension	160(L) x 50(W) mm 6.2(L) x 1.96(W) inch
O.S. Support	Native driver support PCIe-NVMe & PCIe-AHCI: Windows 10/8.1, Windows Server 2012 R2 Linux series, Fedora, SUSE, Ubuntu, Red Hat Requires Microsoft update: Windows 7, Windows Server 2008 R2 (https://support.microsoft.com/en-us/kb/2990941)
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-10 to 50°C (14 to 122°F)
Relative Humidity	20 to 80% (non-condensing)

Host Interface

PCI Express 3.0 x4 interface
(Compatible with PCI Express x8, and x16 slots)

Data Transfer Rate

32Gbps

NVMe Interface

1 x M.2 x4 M key (M.2 NGFF)

NVMe Type

Supports 2230/2242/2260/2280/22110 PCIE SSD

Power Supply

3.3V@ 3A for M.2 NVMe SSD

LED Display

White – Power On Indicator
Flash Blue – Data Accessing Indicator

Dimension

160(L) x 50(W) mm
6.2(L) x 1.96(W) inch

O.S. Support

Native driver support PCIe-NVMe & PCIe-AHCI:
Windows 10/8.1, Windows Server 2012 R2
Linux series, Fedora, SUSE, Ubuntu, Red Hat
Requires Microsoft update:
Windows 7, Windows Server 2008 R2
(https://support.microsoft.com/en-us/kb/2990941)

Operating Temperature

0 to 40°C (32 to 104°F)

Storage Temperature

-10 to 50°C (14 to 122°F)

Relative Humidity

20 to 80% (non-condensing)

Compatibility

M.2 NVMe SSD

	600p	128 GB 256 GB 512 GB 1.02 TB
	RD400	256 GB 512 GB 1 TB
	SM961	256 GB
	960 EVO	250 GB 500 GB 1000 GB
	960 PRO	512 GB 1024 GB 2048 GB
	XG3	128 GB 256 GB 512 GB
	XG5	256 GB 512 GB 1 TB

Last updated on December 14th, 2017.
