NA341TB3

Rackmount 2U 8 bay (3.5" / 2.5") Thunderbolt™ 3 RAID Storage

Overview

The Flagship Rackmount Thunderbolt™ 3 Storage with Highest Data Protection Security

Through the utilizing and implementing of Netstor NA341TB3 19” rackmount storage to your system, you are rest assured your data stored on the unit are given the finest data protection with the highest data transfer speed to the thunderbolt3 host computer or workstation. What’s more, the storage unit is designed to be able to be aligned with the 19-inch rack cabinet effortlessly as the setup of the storage is very simple and straightforward via the easy connection of Thunderbolt™ 3 between host and enclosure.

Easy to Monitor, featuring Event Notification and HDD Failure Indication

It's very easy for the MIS staff and the end-user to set up the NA341TB3 with the system. Through Netstor unit’s web GUI program, not only the hardware RAID can be set up, but the event notification by e-mail can also be activated. Hence, when a component fails or an HDD has an issue, the storage will buzzer alarm and will immediately send an event notification by email to the end-users to let them know the situation right away. Moreover, the storage has HDD failure indication with SGPIO support. When any HDD fails, the red LED indicator on the drive tray will light to allow the users to correctly find the faulty HDD for drive replacement and RAID rebuilding.



The Uncompromised Hardware RAID

Built-in hardware RAID controller providing uncompromised hardware RAID levels including RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 for all applications with maximum protection and utmost performance.

Greatest Storage Capacity & Performance

Designed 8-bay rackmount storage with support of up to 8 hard drives and delivering extraordinary, optimized 40Gbps performance and achievement, the Netstor unit features Thunderbolt™ 3 interface capable of providing data transfer rates up to 2750 MB/s, 2x times the Thunderbolt 2, for all kinds of storage and data archiving.

AJA Test Performance - RAID 5 Mode

WRITE

1195 MB/SEC

READ

1398 MB/SEC

* Performance may vary based on system hardware & configuration.

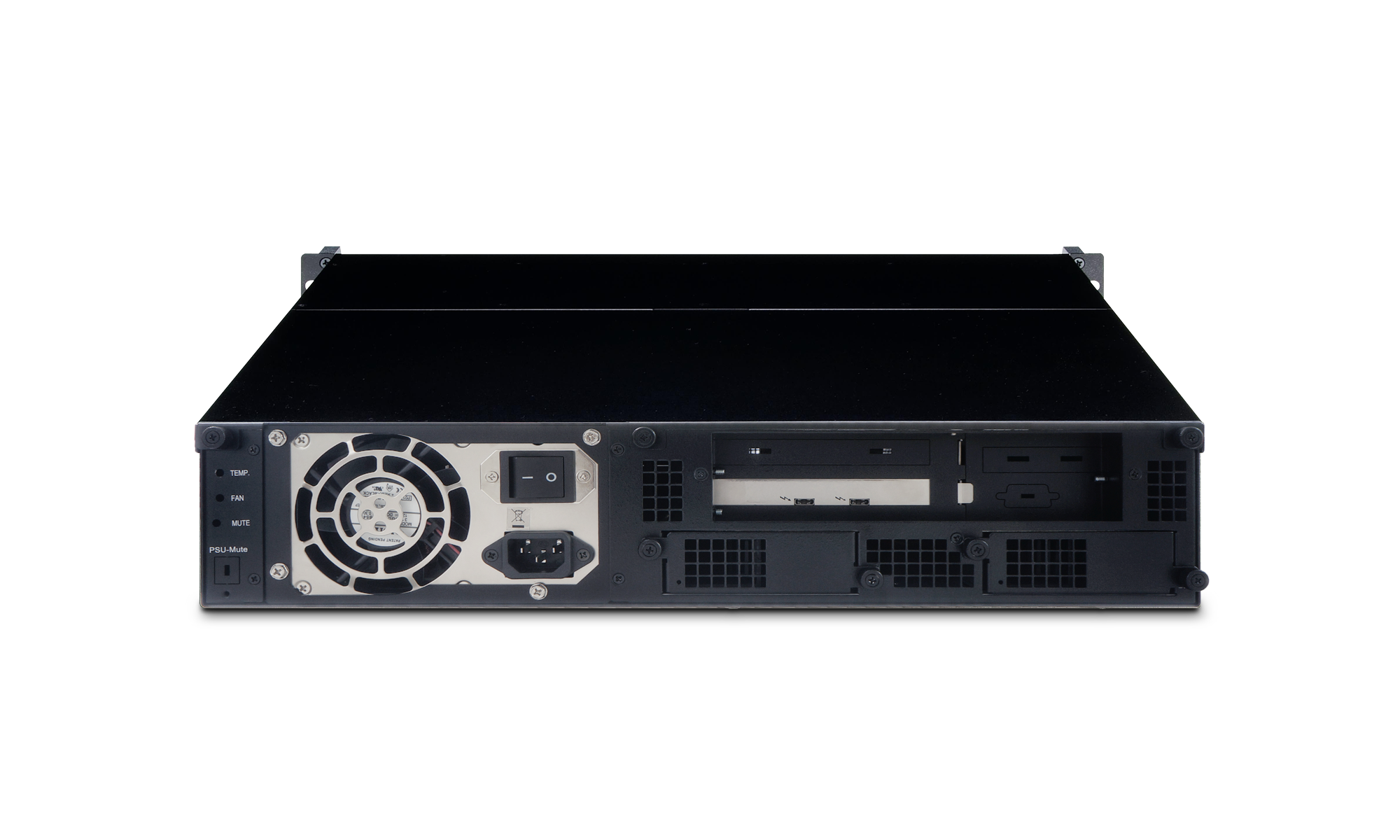

Daisy-Chain with the Dual Thunderbolt 3 Ports

Carrying two rear hot-swappable 8x8 cm ultra quiet cooling fan modules that provide best airflow ventilation ever and ensure all types of drives are kept at the moderate temp for work.

HDD Tray Keylock with Highest Physical Safety

By the thoughtfully designed keylock for each hard drive tray within the storage enclosure, the keylock security helps prevent the MIS staff and the end-users from pulling the wrong HDD out of the chassis mistakenly.

Drive Tray Supporting both 2.5”/SSD and 3.5”

The drive tray from the Thunderbolt™ 3 rackmount storage has been thoughtfully designed to work with both SSD/2.5” HDD and 3.5" hard drive for varied professionals with diverse demands on speed or immense storage capacity.

Excellent Airflow Ventilation Framework

Created with two inner 6x6 cm cooling fans along with the other two rear hot-swappable blower fans, the well designed ventilation architecture by way of short distance between inner and rear fans does genuinely allow the warm air to be smoothly and quickly ventilated out in the company of low dBA sound level to suit all kinds of application.

Specs

Specifications

  NA341TB3
Host Interface
  • Thunderbolt™3 (USB-C Interface, compatible with Thunderbolt™4)
  • 40Gbps High Bandwidth
Controller & RAID Feature
  • RAID-on-Chip Processor
  • 1GB on-board SDRAM with ECC protection
  • Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
  • Multiple RAID Selection
  • Online Array Roaming
  • Online RAID Level/Stripe Size Migration
  • Online Capacity Expansion and RAID Level Migration Simultaneously
  • Greater than 2TB Capacity per Disk Drive Support
Storage
  • Supports up to 8 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
  • Heavy-duty cold-rolled steel Housing
  • Thunderbolt3 Port for Daisy-chain up to 6 Devices
  • Individual Key lock of each HDD tray for physical security
Monitors/Indicators
  • Web base GUI RAID Manager for Remote Management
  • SMTP Support for Email Notification
  • SNMP Support for Remote Manager
  • FAN fail LED
  • Over Temperature LED
  • HDD fail LEDs
Fan Cooler
  • Two 60x 60x 25mm (inner)
  • Two 75x 75x 28mm Blower (rear)
Power Supply
  • Server-grade 400W Single Power Supply
  • Low-noise Design
  • Universal: 100~240VAC, 50/60Hz
Environmental Requirements
  • Operation Temperature: 5°C ~ 50°C
  • Storage Temperature: -20°C~ 70°C
  • Operation Humidity: 10% ~ 80%, non-condensing
  • Storage Humidity: 5% ~ 95%
Dimension
  • 477(D) x 482(W) x 88.5(H) mm
  • 18.7(D) x 19(W) x 3.49(H) inch
Operating System
  • Mac OS X 10.12.3 above, Mac (M1, M1 Pro, M1 Max, and M1 Ultra or Intel)
  • Windows 10/8
Scalability
  • Thunderbolt3 port for daisy-chain up to 6 devices
Package Content Enclosure x 1
HDD Tray x 8 (Installed)
Thunderbolt3-40Gbps cable x 1 (2 meter)
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
Power Cord x 1
Host Interface
  • Thunderbolt™3, USB-C Interface
  • 40Gbps High Bandwidth
Controller & RAID Feature
  • RAID-on-Chip Processor
  • 1GB on-board SDRAM with ECC protection
  • Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
  • Multiple RAID Selection
  • Online Array Roaming
  • Online RAID Level/Stripe Size Migration
  • Online Capacity Expansion and RAID Level Migration Simultaneously
  • Greater than 2TB Capacity per Disk Drive Support
Storage
  • Supports up to 8 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
  • Heavy-duty cold-rolled steel Housing
  • Thunderbolt3 Port for Daisy-chain up to 6 Devices
  • Individual Key lock of each HDD tray for physical security
Monitors/Indicators
  • Web base GUI RAID Manager for Remote Management
  • SMTP Support for Email Notification
  • SNMP Support for Remote Manager
  • FAN fail LED
  • Over Temperature LED
  • HDD fail LEDs
Fan Cooler
  • Two 60x 60x 25mm (inner)
  • Two 75x 75x 28mm Blower (rear)
Power Supply
  • Server-grade 300W Single Power Supply
  • Low-noise Design
  • Universal: 100~240VAC, 50/60Hz
Environmental Requirements
  • Operation Temperature: 5°C ~ 50°C
  • Storage Temperature: -20°C~ 70°C
  • Operation Humidity: 10% ~ 80%, non-condensing
  • Storage Humidity: 5% ~ 95%
Dimension
  • 477(D) x 482(W) x 88.5(H) mm
  • 18.7(D) x 19(W) x 3.49(H) inch
Operating System
  • Mac OS X 10.12.3 above
  • Windows 10/8
Scalability
  • Thunderbolt3 port for daisy-chain up to 6 devices
Package Content
Enclosure x 1
HDD Tray x 8 (Installed)
Thunderbolt3-40Gbps cable x 1 (2 meter)
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
Power Cord x 1

Accessories

Model No. Description
NA341TB3 2U 8 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 400W Power Supply, One 2 meter Thunderbolt3 cable
ANNA920C0340 Black Color Short Tray
ATSRFR28TW 28" FRICTION SLIDE RAILS
Model No. - NA341TB3
2U 8 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 400W Power Supply, One 2 meter Thunderbolt3 cable
Model No. - ANNA920C0340
Black Color Short Tray
Model No. - ATSRFR28TW
28" FRICTION SLIDE RAILS
