Netstor Technology

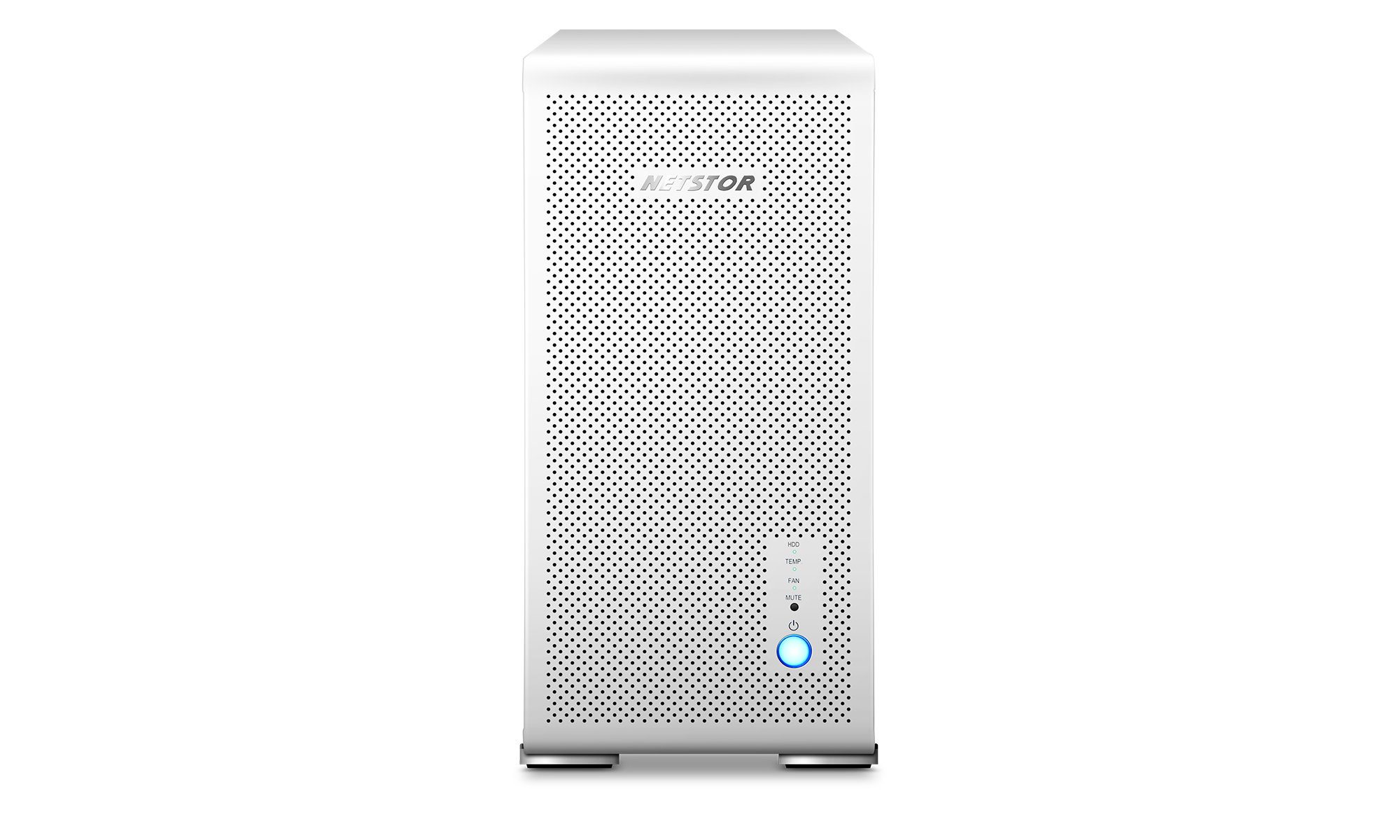

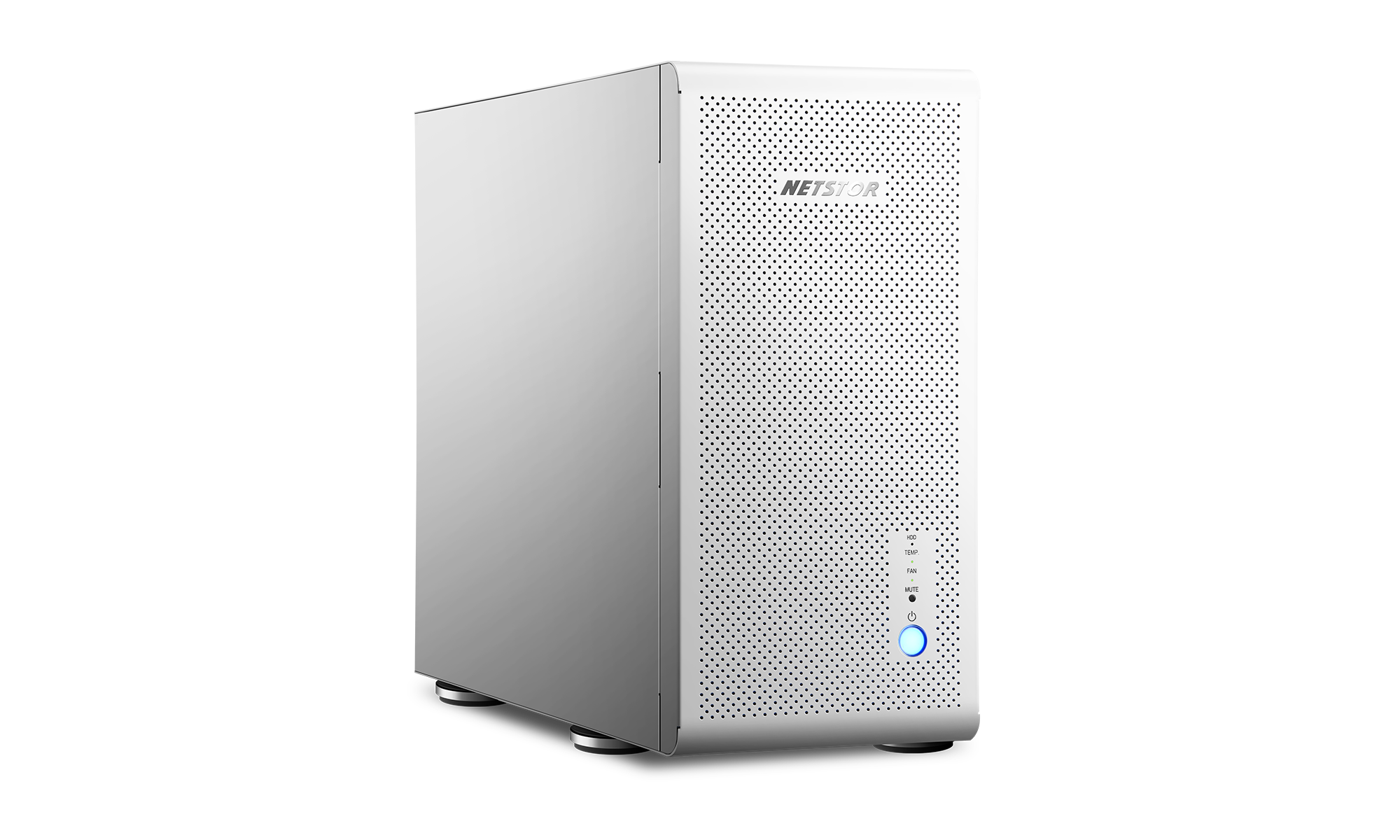

NS780TB3

Desktop 16 bay (3.5" / 2.5") Thunderbolt™ 3 Storage

Overview

The Simplest Way to Connect–Thunderbolt™ 3

The blazing-fast, Thunderbolt™ 3 interface 40Gbps has been thoughtfully designed for the Netstor desktop NS780TB3 storage enclosure to allow the unit to be kept at the highest, full performance and achievements of up to 2750 MB per second, which is two times (2x) Thunderbolt™ 2’s throughput and eight times (8x) USB 3’s performance.

Up to 16 Bays Mass Storage Capacity

Created desktop 16-bay storage chassis with support of sixteen hot-swappable drive trays inside, the NS780TB3 supports the most space utilization efficiency characteristic, featuring the utmost high-density trait that allows the storage to be excellently situated at any site for production. As each tray attached with a present maximum 20TB HDD, the total usable storage will reach up to 320TB raw capacity in favor of any mass content creation work and application; additionally, as future drives whose capacity greater than the current 20TB are utilized in NS780TB3 will the eventual total capacity be even greater.

^* Note: Hard drive sold separately.

Broad Range of RAID Card Support

Based on the application and requirement, users can choose their own desired brand and model of RAID card or SAS Host Bus Adapter (HBA) to be installed in the desktop storage in support of operation. By utilizing a sixteen port RAID controller card, the Netstor desktop Thunderbolt™ 3 JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60 for the secured stored data and archiving.

^* Note: RAID card/HBA card sold separately.

Ideal Companion to Mac Studio

The all-new desktop Mac Studio freshly debuts with multiple high-speed Thunderbolt™ 4 ports, allowing multiple external devices and mass storages to be connected with in support of production, and the NS780TB3 will surely be the very ideal choice for the mass data storage expansion by way of next-level and blazing-fast data transmission rate in favor of varied demanding workflows in all fields to the Mac Studio.

Best Airflow Ventilation Framework with Ultra Quiet Trait

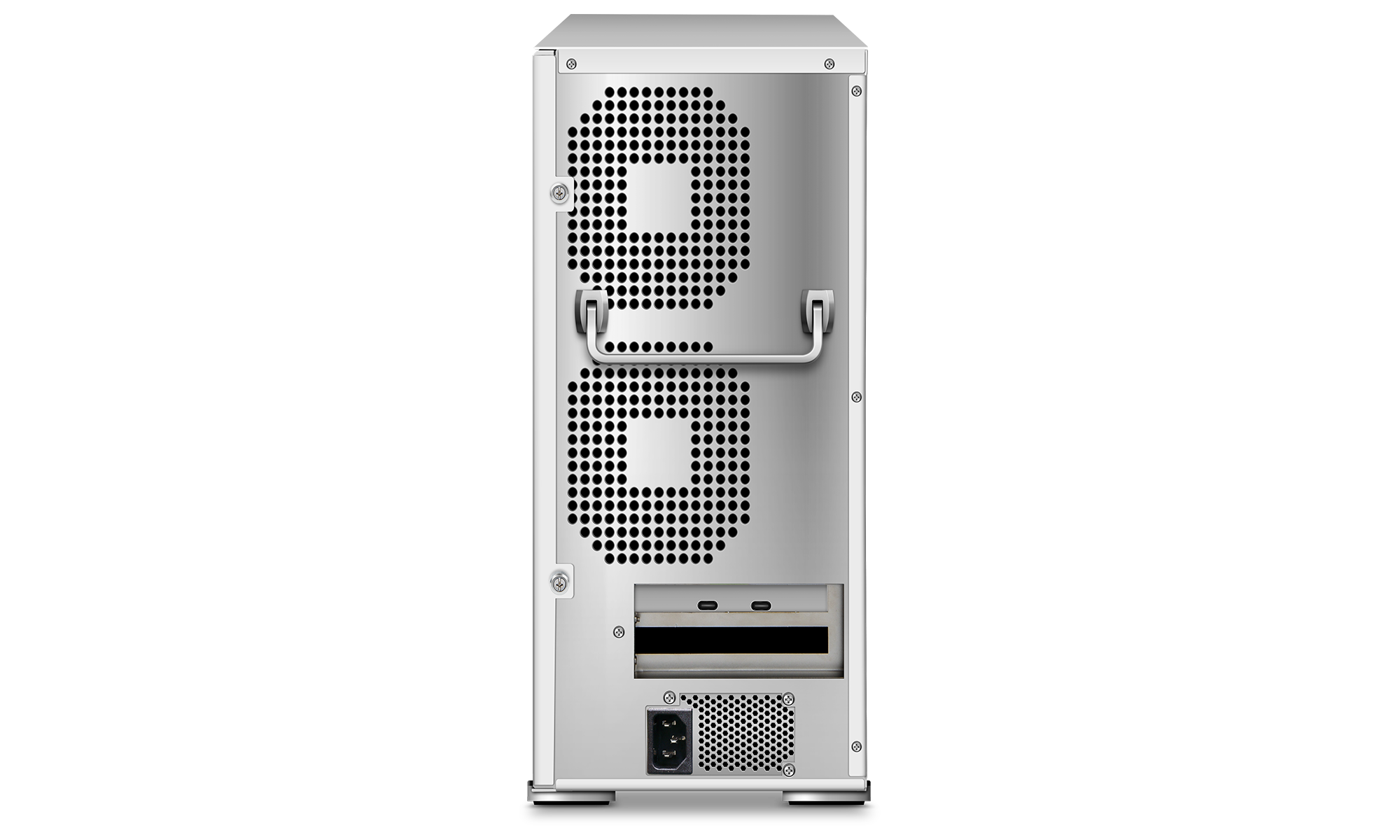

Built with two front and two rear 12×12 cm cooling fans, the well-devised airflow ventilation architecture does genuinely allow the warm air to be smoothly ventilated out of the desktop storage enclosure in the company of ultra low dBA sound level to suit all sorts of production and environment.

Capacity, Ultra Performance, and High Security Made for 8K Editors

NS780TB3 is the first ever finest storage created for the digital content creation, video editing, color-grading, post production and playback. With two NS780TB3 storage units each with a RAID 6 volume over the hard drives connected to a Mac Studio, the two Netstor units can eventually be grouped for a RAID 0 volume via macOS, achieving up to 4200 MB/s throughput to Mac Studio in support of the 8K video production performance for the pro colorists, video editors, and content creators.

Works with both Windows and macOS Platform

The Netstor 16-bay desktop storage is designed to support Windows 10, Windows 11, and macOS operating system platforms; also, the storage enclosure itself simply doesn’t require a driver for operation and application. Thus the NS780TB3 does truly work with all computers and servers running Windows 10/11 and Mac computers including Mac Studio running macOS.

All other product names mentioned in the content are trademarks or registered trademarks of their respective companies in the U.S. and other countries.

Specs

Specifications

	NS780TB3
Host Interface	Thunderbolt™3 (USB-C Interface, compatible with Thunderbolt™4)
Data Transfer Rate	40Gbps High Bandwidth
HDD Interface	SAS (12G/6Gbps)/ SATA (6Gbps)
No. of Disk(s)	Up to 16 (For 2.5 or 3.5 inch SSD/HDD & sold separately)
RAID Levels	Requires a RAID card or HBA card(JBOD) with internal 16 port (RAID card/HBA card sold separately)
PCIe Slot Expansion	None
LED Display for each Tray	Flash Blue - HDD Accessing Indicator Red - HDD Failure Indicator
LED Display for Enclosure	1. Global HDD LED Flash Blue – HDD access; Red – HDD failure; Flash Purple – HDD rebuilding 2. TEMP LED Green – TEMP normal; Red -over 50°C 3. FAN LED Green – FAN normal; Red – FAN failure
Alarm	Mutable buzzer beeping for fan failure or over temperature occurs
Material	Aluminum housing with solid metal structure
Power Supply	500W Single PSU Input: 90-230 VAC/50-60 HZ Output: +5V and +12V
Dimension	450(D) x 176(W) x 374(H) mm 17.7 (D) x 6.9 (W) x 14.7 (H) inch
Cooling	Front: Two 120x120x25 mm cooling fans Rear: Two 120x120x25 mm cooling fans
System Support	Windows, Mac OS (M1, M1 Pro, M1 Max, and M1 Ultra or Intel)
O.S. Support	OS Independent
Host Requirement	One Thunderbolt 3/ Thunderbolt 4 port
Operating Temperature	5 to 40°C (41 to 104°F)
Storage Temperature	-10 to 50°C (14 to 122°F)
Relative Humidity	20 to 80% (non-condensing)
Package Content	Enclosure x 1 HDD Tray x 16 (Installed) Thunderbolt3-40Gbps cable x 1 (2 meter) Internal miniSAS cable x 4 Hard Disk Drive mounting screw x 64 Power Cord x 1

Host Interface

Thunderbolt™3 (USB-C Interface, compatible with Thunderbolt™4)

Data Transfer Rate

40Gbps High Bandwidth

HDD Interface

SAS (12G/6Gbps)/ SATA (6Gbps)

No. of Disk(s)

Up to 16 (For 2.5 or 3.5 inch SSD/HDD & sold separately)

RAID Levels

Requires a RAID card or HBA card(JBOD) with internal 16 port (RAID card/HBA card sold separately)

PCIe Slot Expansion

None

LED Display for each Tray

Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator

LED Display for Enclosure

1. Global HDD LED
Flash Blue – HDD access;
Red – HDD failure;
Flash Purple – HDD rebuilding
2. TEMP LED
Green – TEMP normal; Red -over 50°C
3. FAN LED
Green – FAN normal; Red – FAN failure

Alarm

Mutable buzzer beeping for fan failure or over temperature occurs

Material

Aluminum housing with solid metal structure

Power Supply

500W Single PSU
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V

Dimension

450(D) x 176(W) x 374(H) mm
17.7 (D) x 6.9 (W) x 14.7 (H) inch

Cooling

Front: Two 120x120x25 mm cooling fans
Rear: Two 120x120x25 mm cooling fans

System Support

Windows, Mac OS

O.S. Support

OS Independent

Host Requirement

One Thunderbolt 3/ Thunderbolt 4 port

Operating Temperature

5 to 40°C (41 to 104°F)

Storage Temperature

-10 to 50°C (14 to 122°F)

Relative Humidity

20 to 80% (non-condensing)

Package Content

Enclosure x 1
HDD Tray x 16 (Installed)
Thunderbolt3-40Gbps cable x 1 (2 meter)
Internal miniSAS cable x 4
Hard Disk Drive mounting screw x 64
Power Cord x 1

Accessories

Model No.	Description
NS780TB3	Desktop 16 Bay SAS/SATA Thunderbolt3 JBOD Including one Thunderbolt3 cable, internal miniSAS cable x4 pcs and 500W Single PSU.
BARC1883IX16	Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

Model No. - NS780TB3

Desktop 16 Bay SAS/SATA Thunderbolt3 JBOD Including one Thunderbolt3 cable, internal miniSAS cable x4 pcs and 500W Single PSU.

Model No. - BARC1883IX16

Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
