NS370S

1U 4-bay SAS (Host) to SAS/SATA (Disk) JBOD

Overview

The Ultra High-Speed and Most Reliable
1U Rackmount SAS to SAS/SATA Drive JBOD Storage

The Netstor NS370S 19-inch rackmount storage is the best companion to the server and workstation with the finest data protection and highest data transfer speed. Also, the 1U DAS (direct-attached storage) is created to be aligned with the 19” rack cabinet easily as the setup of the unit is very simple and straightforward via the easy external mini-SAS connection between host and enclosure.

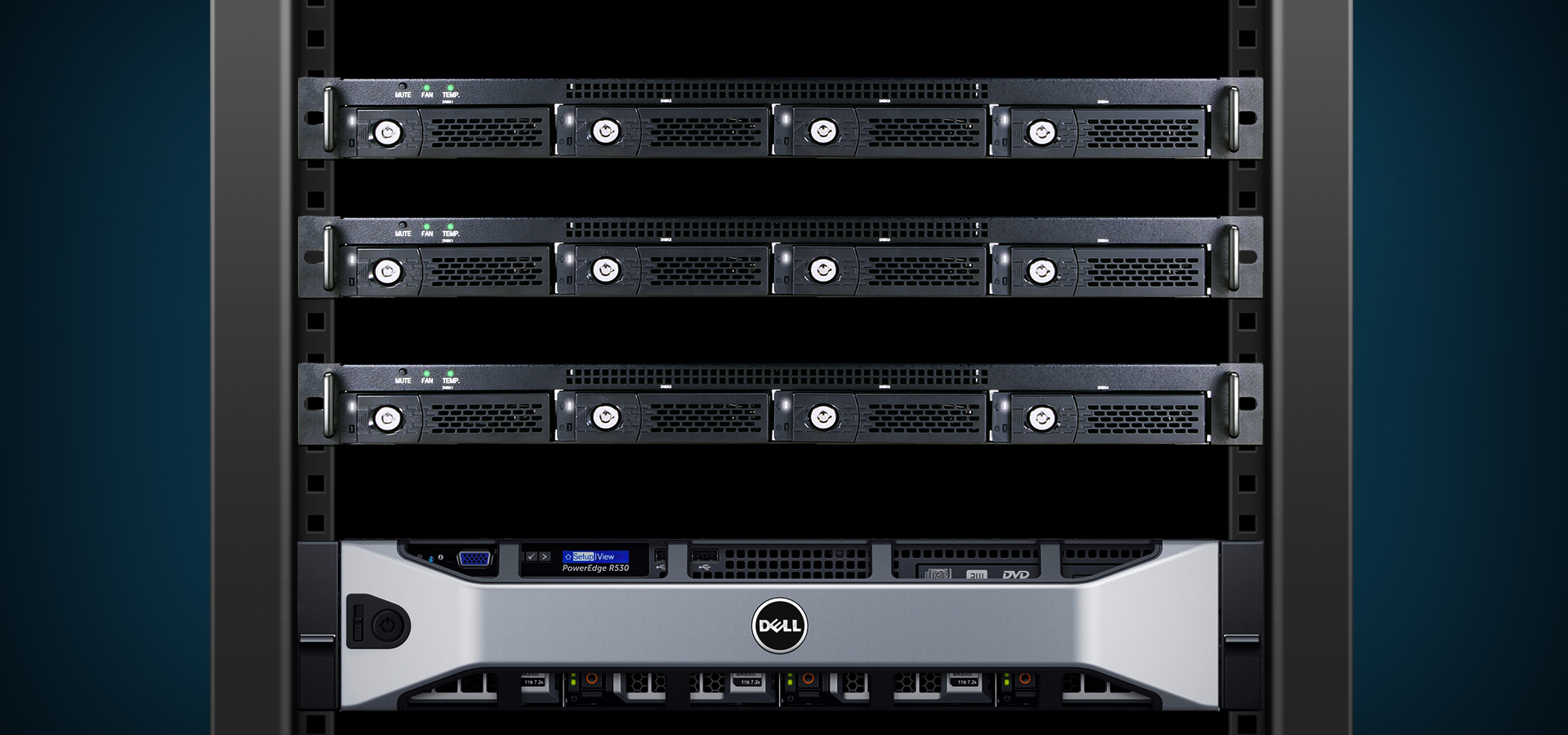

netstor ns370s is created to be aligned with the 19” rack cabinet easily

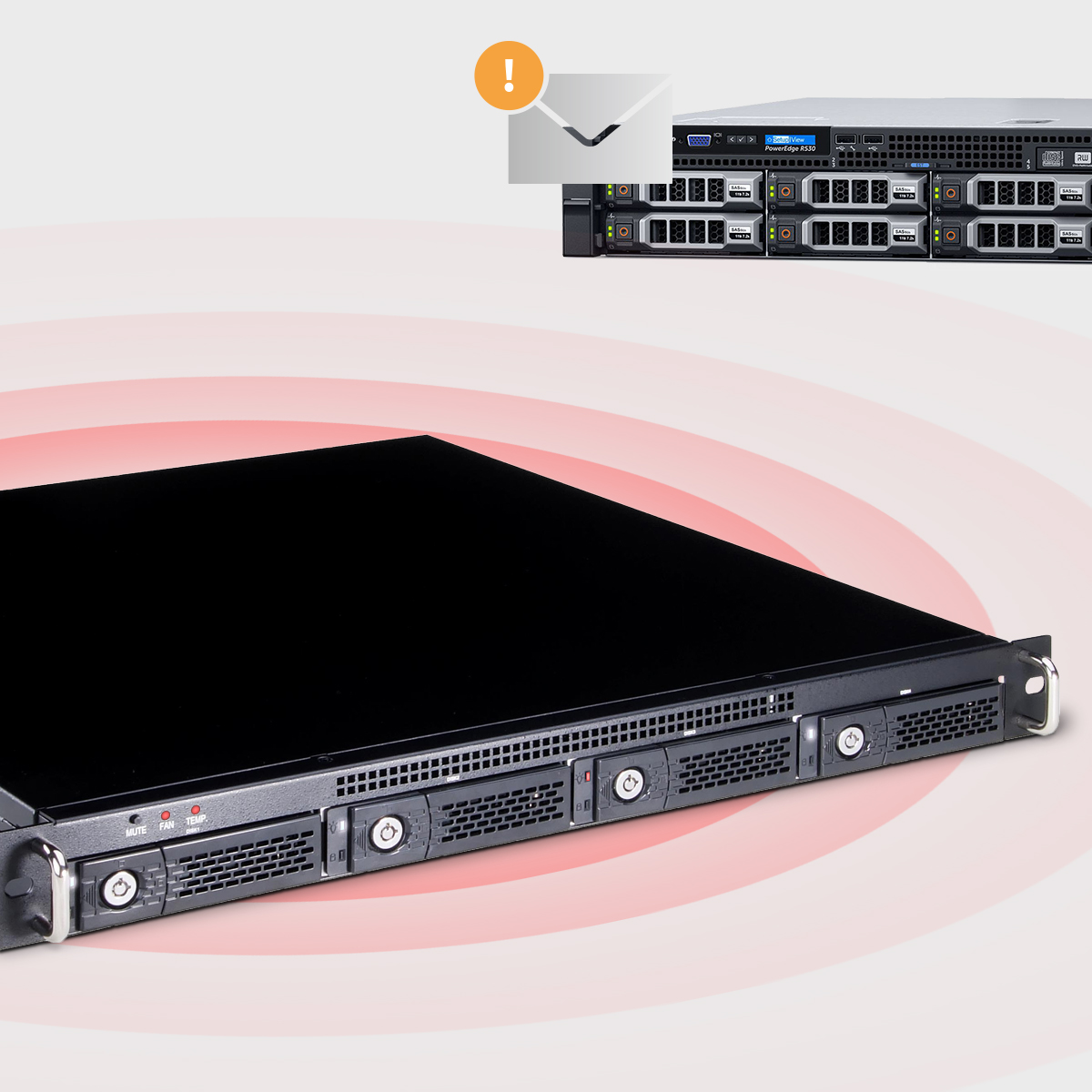

The Convenient Enclosure Monitoring Feature

In addition to setting up NS370S with any workstation or server system being effortless and easy, the Netstor storage has been considerately designed to have the built-in temperature and blower fan monitoring system; when over-temperature occurs or one of the blower fans fails, the enclosure system will automatically buzzer alarm to let the MIS/users know the situation right away.

Fan Status
Temp. Status
netstor ns370s monitoring feature

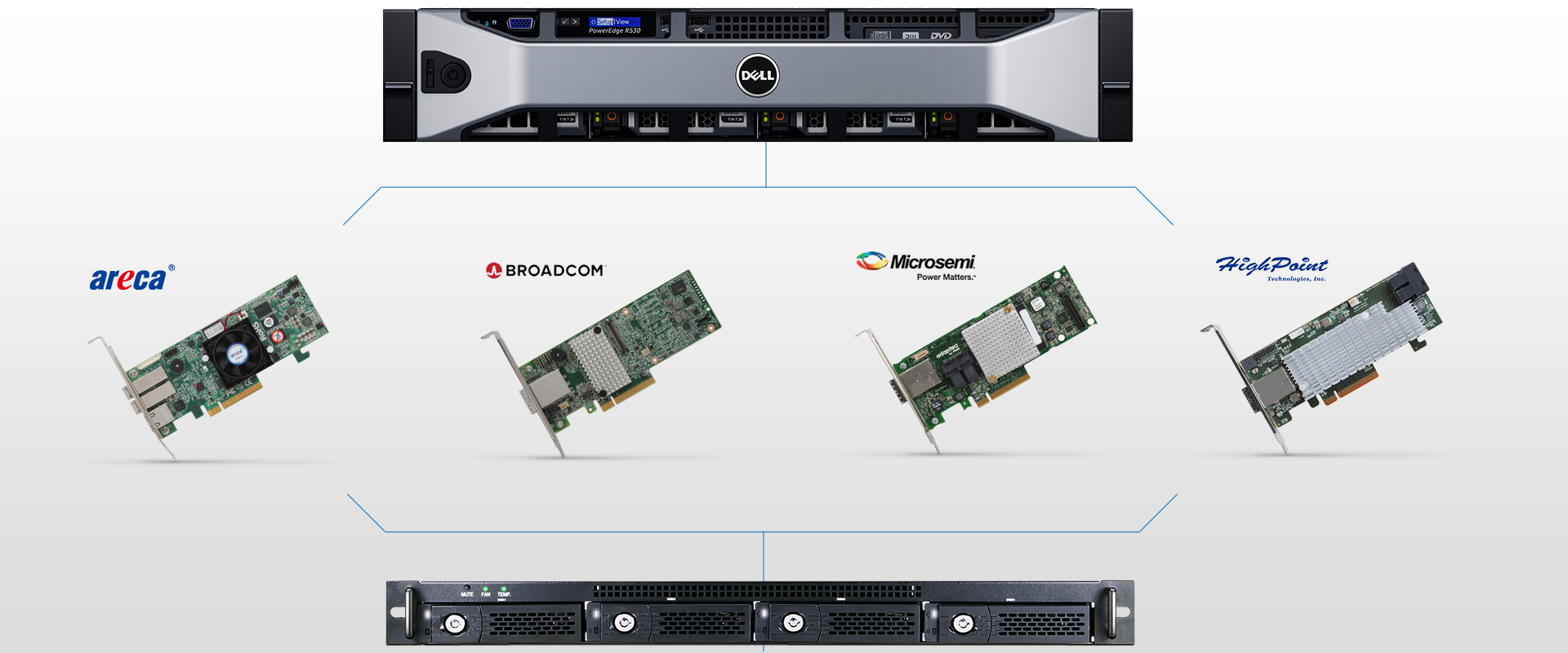

The Most Safety RAID Level, Maximize System Reliability for Data Storage

By connecting to the thirty-party’s RAID controller card at the server/workstation side, uncompromised hardware RAID levels including RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 and so forth are given to the Netstor NS370S storage in favor of all production and applications with maximum protection and utmost performances.

netstor ns370s support hardware RAID by connecting to the thirty-party’s RAID controller card at the host

Empower Enterprise Storage Solutions for SMBs with Best Storage Capacity and Performance

Designed 4-bay rackmount storage with support of up to four 3.5” hard drives / 2.5” solid-state drives (SSDs) and delivering extraordinary, optimized 24 Gbps performance and achievement, the NS370S storage features high-speed external mini-SAS interface capable of providing lightning-fast data transfer rates up to 2400 MB/s between server and Netstor unit in favor of all sorts of storage and mass data archiving.

2400 MB/SEC

HDD Tray Keylock with Highest Physical Security

The drive tray from the 1U rackmount storage is for varied professionals with diverse demands on immense storage capacity. By the thoughtfully designed keylock for each hard drive tray within the storage enclosure, the keylock high security helps prevent the MIS/end-users from pulling the wrong HDD out of the enclosure mistakenly.

ns370s offer disk tray lock keys

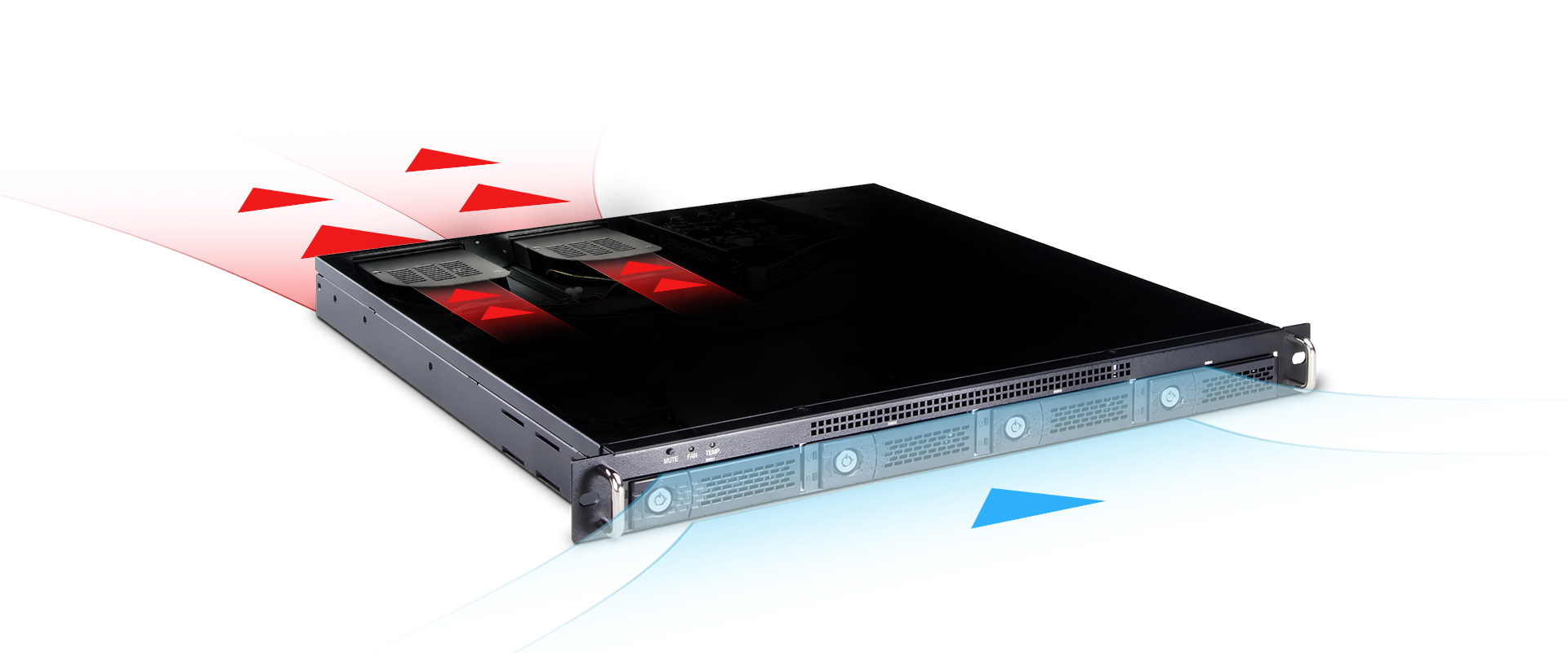

Excellent Airflow Ventilation Framework

Created with two rear hot-swappable blower cooling fans by way of the well designed ventilation architecture, the storage does genuinely allow the warm air to be smoothly and quickly ventilated out of the enclosure in the company of the low dBA sound level to precisely suit all kinds of the applications.

netstor ns370s excellent airflow framework

All other product names mentioned in the content are trademarks or registered trademarks of their respective companies in the U.S. and other countries.

Specs

Specifications

  NS370S
Host Interface Single port miniSAS (SFF8088)
HDD Interface SAS/SATA (12G/6Gbps)
No. of Disk(s) Up to 4
SAS Expander None
Expansion Port None
LED Display for each Tray White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
LED Display for Enclosure Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red
Material Heavy-duty cold-rolled steel Housing
Dimension 453(D) x 482(W) x 44(H) mm
17.8 (D) x 19 (W) x 1.73 (H) inch
Power Supply Server-grade 250W Single Power Supply
Low-noise Design
Universal: 100~240VAC, 50/60Hz
Cooling Two 75x 75x 28mm Blower (rear)
O.S. Support OS Independent
Operating Temperature 5 to 40°C (41 to 104°F)
Storage Temperature -10 to 50°C (14 to 122°F)
Relative Humidity 20 to 80% (non-condensing)
Package Content Enclosure x 1
HDD Tray x 4 (Installed)
Hard Disk Drive mounting screw x 16
Key for HDD tray x 2
Power Cord x 1
Host Interface
Single port miniSAS (SFF8088)
HDD Interface
SAS/SATA (12G/6Gbps)
No. of Disk(s)
Up to 4
SAS Expander
None
LED Display for each Tray
White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
LED Display for Enclosure
Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red
Material
Heavy-duty cold-rolled steel Housing
Dimension
453(D) x 482(W) x 44(H) mm
17.8 (D) x 19 (W) x 1.73 (H) inch
Power Supply
Server-grade 250W Single Power Supply
Low-noise Design
Universal: 100~240VAC, 50/60Hz
Cooling
Two 75x 75x 28mm Blower (rear)
O.S. Support
OS Independent
Operating Temperature
5 to 40°C (41 to 104°F)
Storage Temperature
-10 to 50°C (14 to 122°F)
Relative Humidity
20 to 80% (non-condensing)
Package Content
Enclosure x 1
HDD Tray x 4 (Installed)
Hard Disk Drive mounting screw x 16
Key for HDD tray x 2
Power Cord x 1

Accessories

Model No. Description
NS370S 1U 4 Bay SAS/SATA JBOD with single miniSAS connector, 250W Single power supply, without external cable
ANNA920C0340 Black Color Short Tray
ATSRFR28TW 28" FRICTION SLIDE RAILS
Model No. - NS370S
1U 4 Bay SAS/SATA JBOD with single miniSAS connector, 250W Single power supply, without external cable
Model No. - ANNA920C0340
Black Color Short Tray
Model No. - ATSRFR28TW
28" FRICTION SLIDE RAILS
