Netstor Technology

NS372TB3

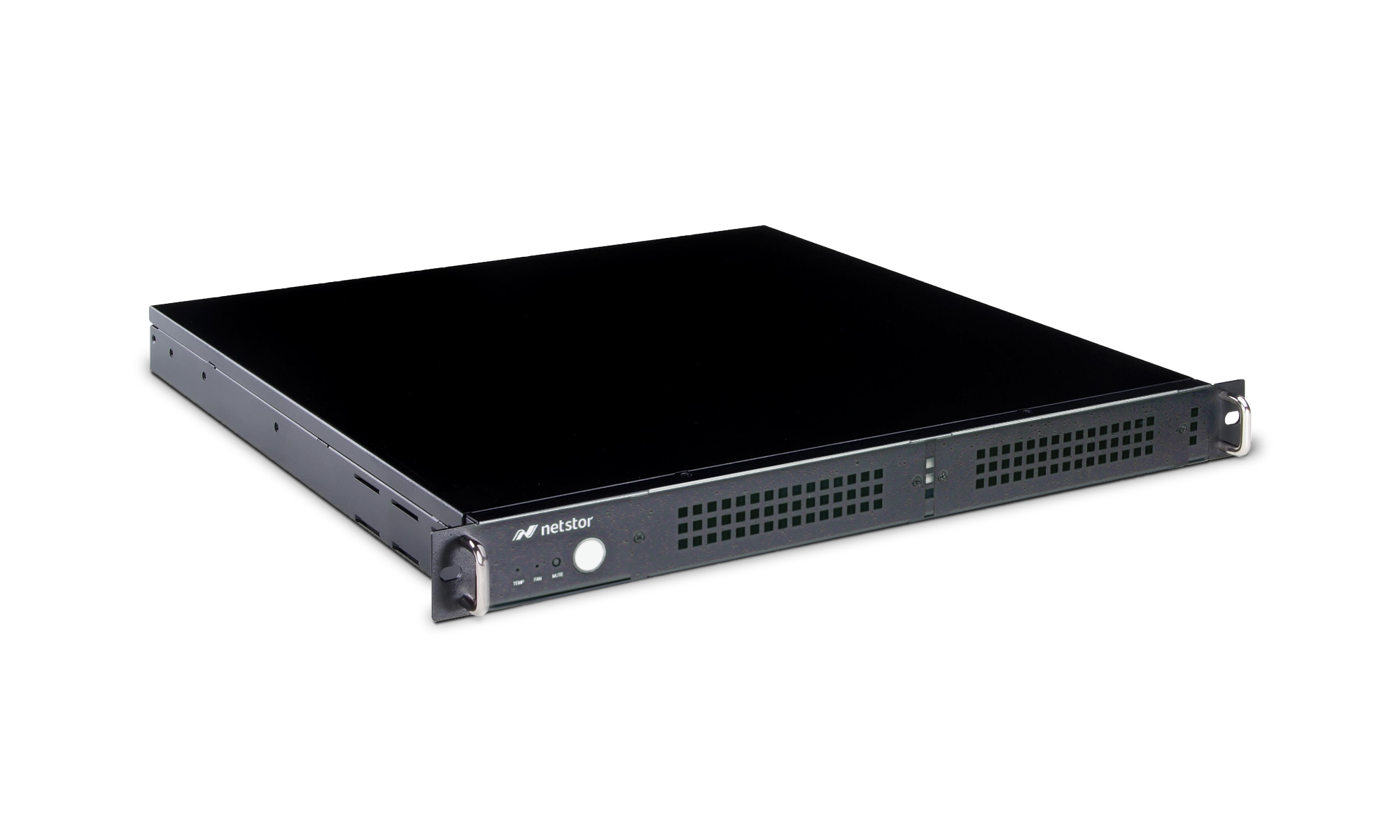

1U Rackmountable 2-bay (5.25”) LTO Tape Drive to Thunderbolt™ 3 Enclosure

Overview

Enable Internal Half-Height LTO Drive to Thunderbolt 3

Netstor NS372TB3 storage enclosure transforms any internal half-height LTO tape drive to Thunderbolt 3. Also, the NS372TB3 has been thoughtfully designed with two SFF-8482 connectors inside to support up to dual LTO tape drives; latest LTO drives such as LTO-9, LTO-8, and LTO-7 from Quantum, HP, Dell, IBM, and Tandberg are all supported to work with the Netstor 1U enclosure.

^* Note: LTO tape drive is optional.

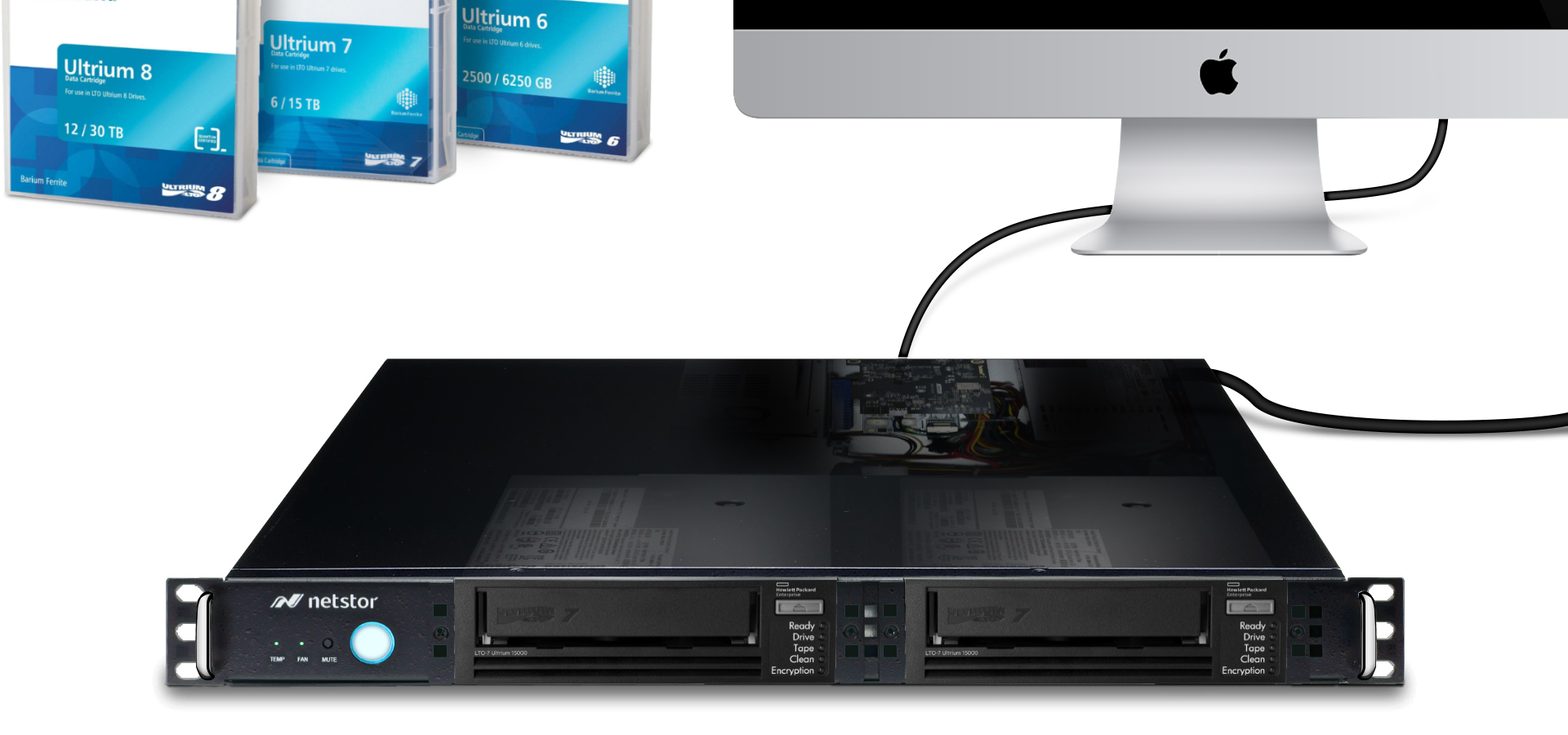

Make LTO Archiving Data Backup via macOS/Windows Thunderbolt Laptop Possible

Without the chance for adding an HBA card in the host computer to connect with the LTO drive device, now users can just connect NS372TB3 storage to any Thunderbolt macOS/Windows laptop or all-in-one like iMac Pro to make LTO archiving available to the Thunderbolt host.

Extremely Easy Installation

The NS372TB3 storage revolutionizes LTO, empowering users to easily connect LTO-8 technology to Thunderbolt 3 computers. Setup is extraordinarily simple; LTO is made easy: just connect to a Thunderbolt 3 host computer, and everything is done and complete.

The Ultimate Thunderbolt 3 Interface & Throughput

Netstor NS372TB3 is created to have greatly high bandwidth up to 40 Gbps for the fastest data storage access. Designed 1U dual-bay 5.25” LTO drive storage chassis, via enclosure's lightning-fast Thunderbolt™ 3 interface, the ultra large archiving storage is ensured to have high data transfer rate up to 2750 MB/s.

40 Gbps

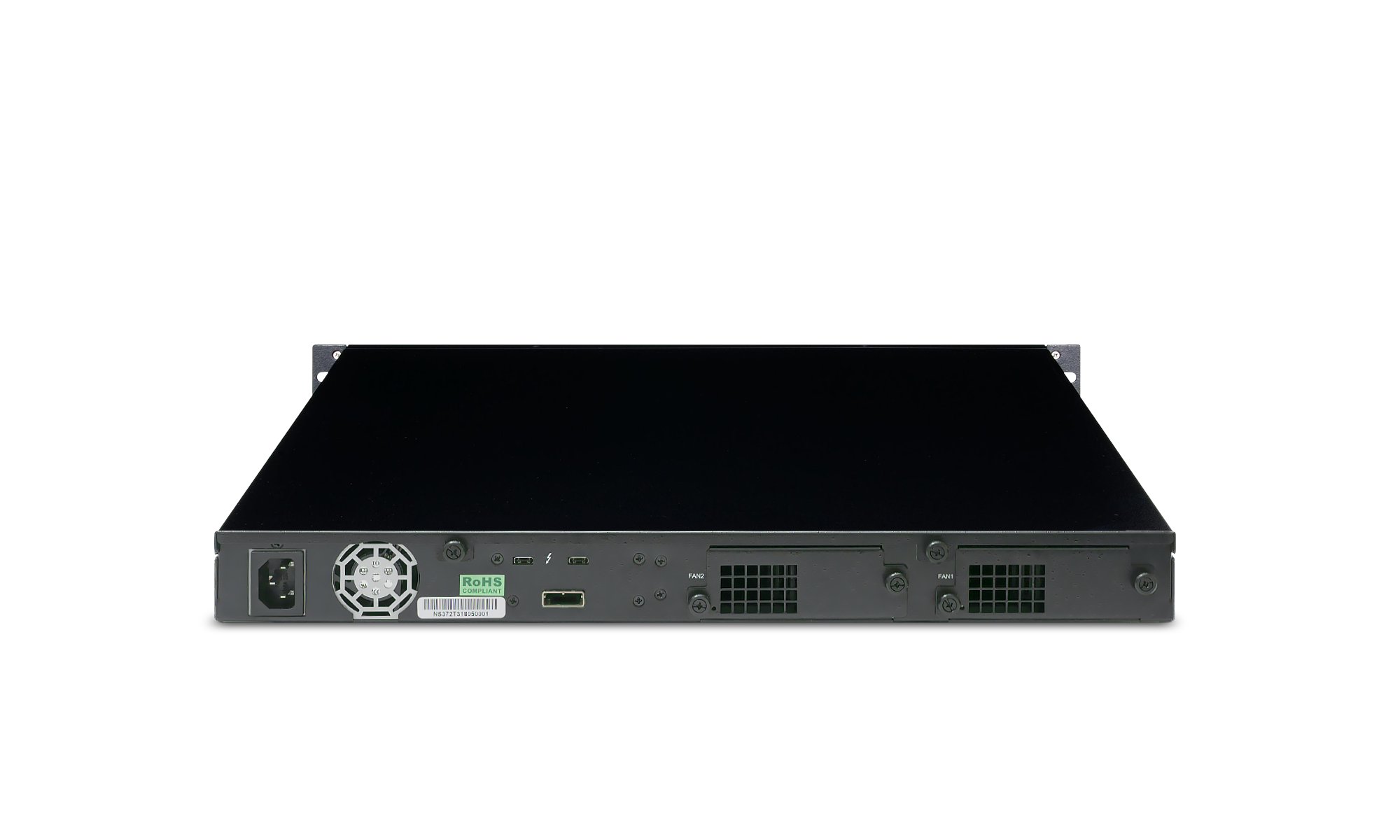

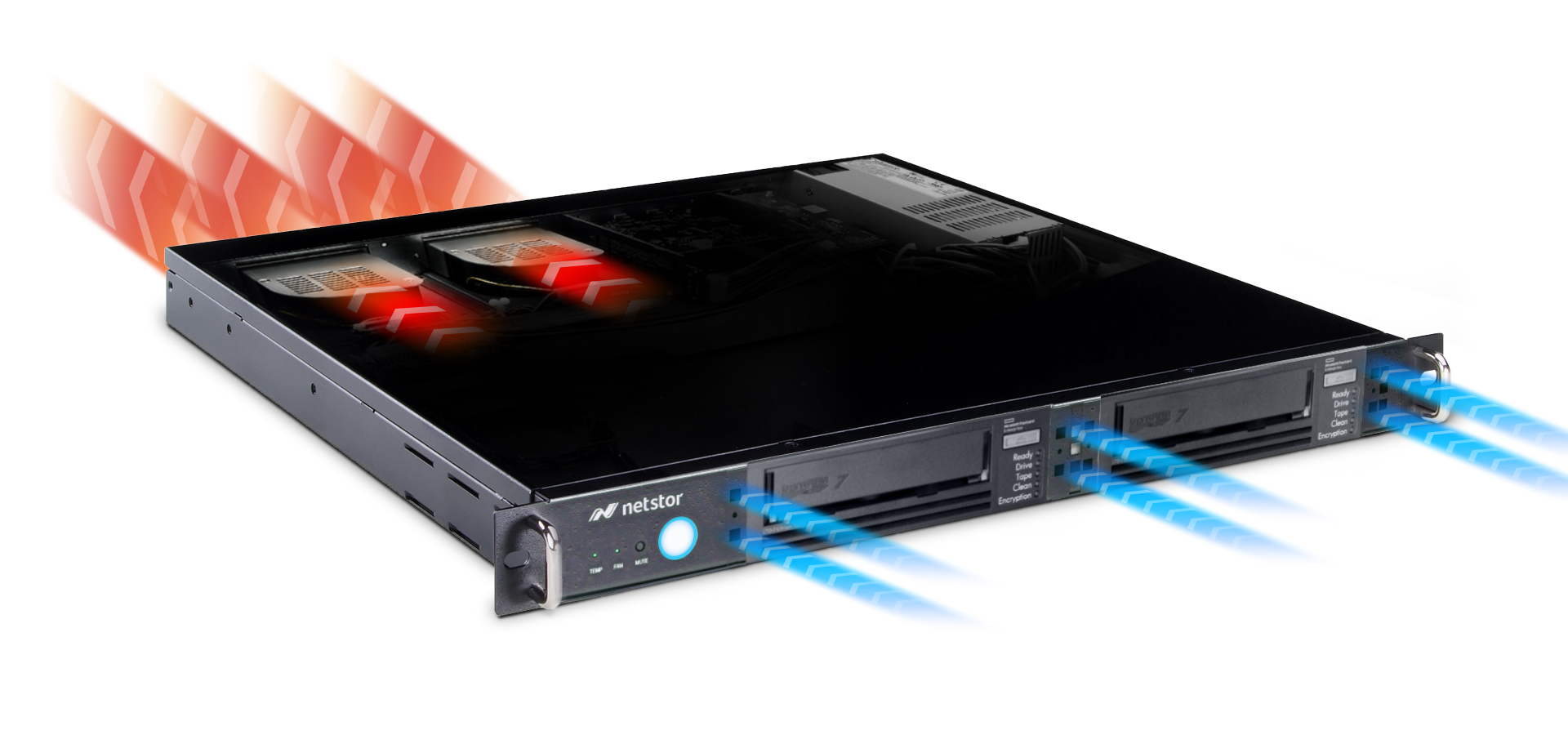

Internal PSU & Best Ventilation for 1U Rackmount Form Factor

Built with an internal server-grade 250W PSU and created with two rear hot-swappable blower fans, the well designed ventilation architecture does genuinely allow the inside mild air to be smoothly ventilated out of the enclosure, matching the reality NS372TB3 having the best 1U enclosure airflow ventilation ever.

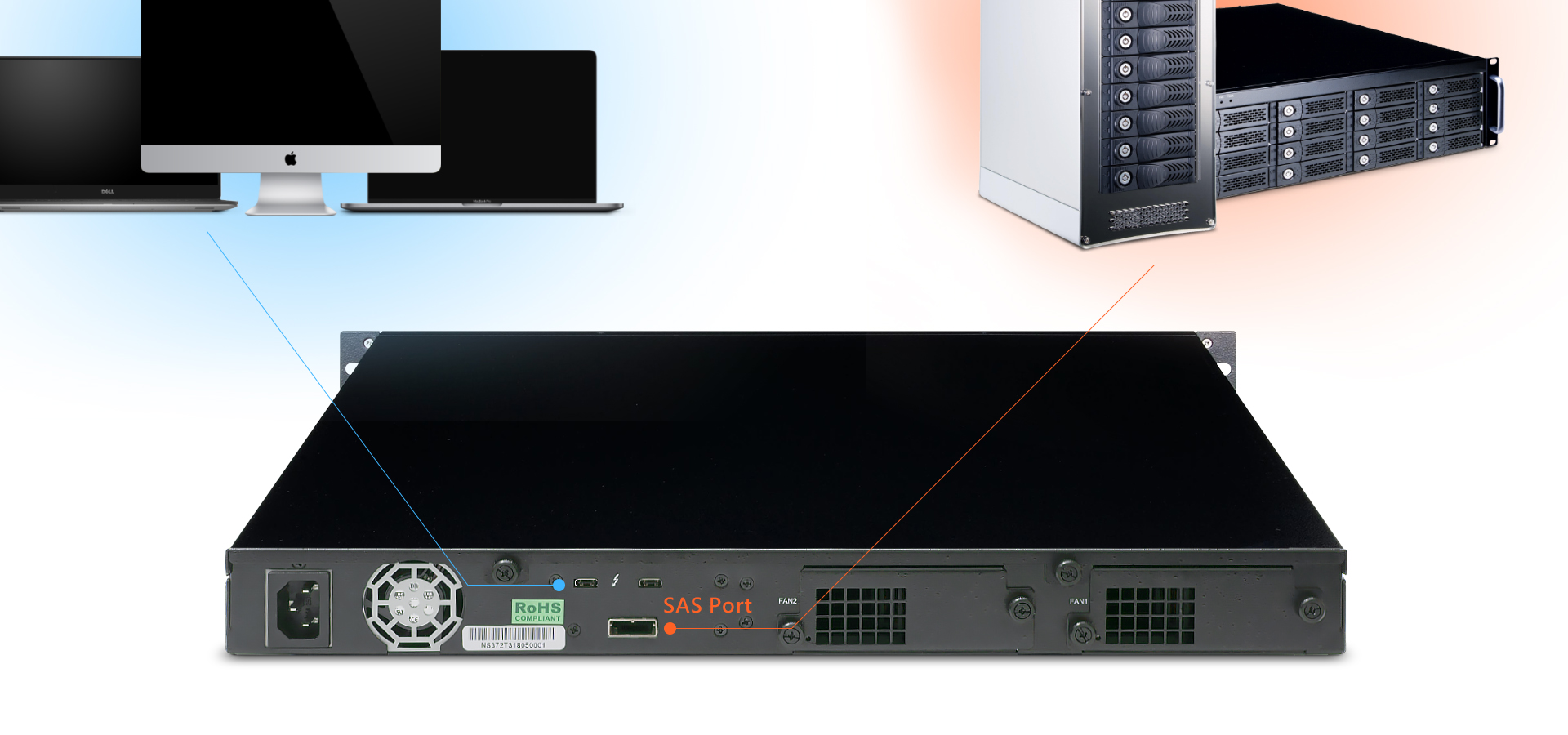

Provides Extra mini-SAS Port to your Host Computer

In addition to add LTO tape drives to your 1U enclosure, Netstor team has considerately created one extra external mini-SAS SFF-8088 port at rear of the storage; this adds an additional mini-SAS port to your Thunderbolt 3 laptop/host computer for you to attach freely an extra LTO, external JBOD or RAID storage in support of usage.

^* All other product names mentioned in the content are trademarks or registered trademarks of their respective companies in the U.S. and other countries.

Specs

Specifications

	NS372TB3
Host Interface	Thunderbolt™3 (Dual Port USB-C for Daisy Chain, compatible with Thunderbolt™4)
Data Transfer Rate	40Gbps
No. of LTO(s)	Up to 2 * 5.25-inch LTO Tape Driver (LTO sold separately)
LTO Interface	SFF-8482 with integrated power
LTO size	210(D) x 134(W) x 42(H) mm 8.3(D) x 5.25(W) x 1.65(H) inch
Thunderbolt Expansion	Up to Six Thunderbolt devices
SAS Port	One external SAS port (SFF8088)
Fan Cooler	Two 75x 75x 28mm Blower (rear)
Power Supply	Server-grade 250W Single Power Supply Low-noise Design Universal: 100~240VAC, 50/60Hz
Enclosure Dimension	452(D) x 482(W) x 44(H) mm 17.8(D) x 19(W) x 1.73(H) inch
Operating System	Mac OS X 10.12.3 above, Mac (M1, M1 Pro, M1 Max, and M1 Ultra or Intel) Windows 10/8
Environmental Requirements	Operation Temperature: 5°C ~ 50°C Storage Temperature: -20°C~ 70°C Operation Humidity: 10% ~ 80%, non-condensing Storage Humidity: 5% ~ 95%
Package Content	1U Enclosure x 1 Thunderbolt3-40Gbps cable x 1 (1 meter) Power Cord x 1

Host Interface

Thunderbolt™3 (Dual Port USB-C for Daisy Chain)

Data Transfer Rate

40Gbps

No. of LTO(s)

Up to 2 * 5.25-inch LTO Tape Driver (LTO sold separately)

LTO Interface

SFF-8482 with integrated power

LTO size

210(D) x 134(W) x 42(H) mm
8.3(D) x 5.25(W) x 1.65(H) inch

Thunderbolt Expansion

Up to Six Thunderbolt devices

SAS Port

One external SAS port (SFF8088)

Fan Cooler

Two 75x 75x 28mm Blower (rear)

Power Supply

Server-grade 250W Single Power Supply
Low-noise Design
Universal: 100~240VAC, 50/60Hz

Enclosure Dimension

452(D) x 482(W) x 44(H) mm
17.8(D) x 19(W) x 1.73(H) inch

Operating System

Mac OS X 10.12.3 above
Windows 10/8

Environmental Requirements

Operation Temperature: 5°C ~ 50°C
Storage Temperature: -20°C~ 70°C
Operation Humidity: 10% ~ 80%, non-condensing
Storage Humidity: 5% ~ 95%

Package Content

1U Enclosure x 1
Thunderbolt3-40Gbps cable x 1 (1 meter)
Power Cord x 1

Accessories

Model No.	Description
NS372TB3	1U 2 * 5.25-inch bay Thunderbolt3 Enclosure, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 250W Power Supply, One 1 meter Thunderbolt3 cable
ATSRFR28TW	28" FRICTION SLIDE RAILS

Model No. - NS372TB3

1U 2 * 5.25-inch bay Thunderbolt3 Enclosure, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 250W Power Supply, One 1 meter Thunderbolt3 cable

Model No. - ATSRFR28TW

28" FRICTION SLIDE RAILS

Download

Q & A

Is NS372TB3 compatible with YoYotta LTFS software? Do I need to add both LTO drives at the same time? How to update Thunderbolt driver for host computer’s Windows 10? SOP for how to install macOS driver on Apple M1 Mac for NS372TB3.
