NA762TB3
桌面型8盤位 <3.5吋 / 2.5吋> Thunderbolt 3 (雷電3) 磁碟陣列
產品特色
快達40Gbps的Thunderbolt 3介面。
產品採用最新的Thunderbolt3介面是原Thunderbolt2頻寬的兩倍， 40Gbps的資料傳輸頻寬讓影音編輯專家的資料讀寫暢快無阻。
Thunderbolt™ 3
40 Gbps
Thunderbolt™ 2
20 Gbps
Thunderbolt™ 1
10 Gbps
USB3.1 Gen2
10 Gbps
USB3.1 Gen1
5 Gbps
高優質硬件RAID處理器，資料保護一把罩。
NA762TB3內建高階硬件式RAID控制器，高性能933MHz Storage專用處理器再加上1GB具ECC規格的SDRAM能夠在高效能的情況下不佔用主機電腦性能，並且提供多元RAID等級選項從RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 為專業編輯人士編輯創作時提供高速傳輸同時又具資料保護的功能。
容量與速度兼俱的最佳8 Bay Thunderbolt桌機。

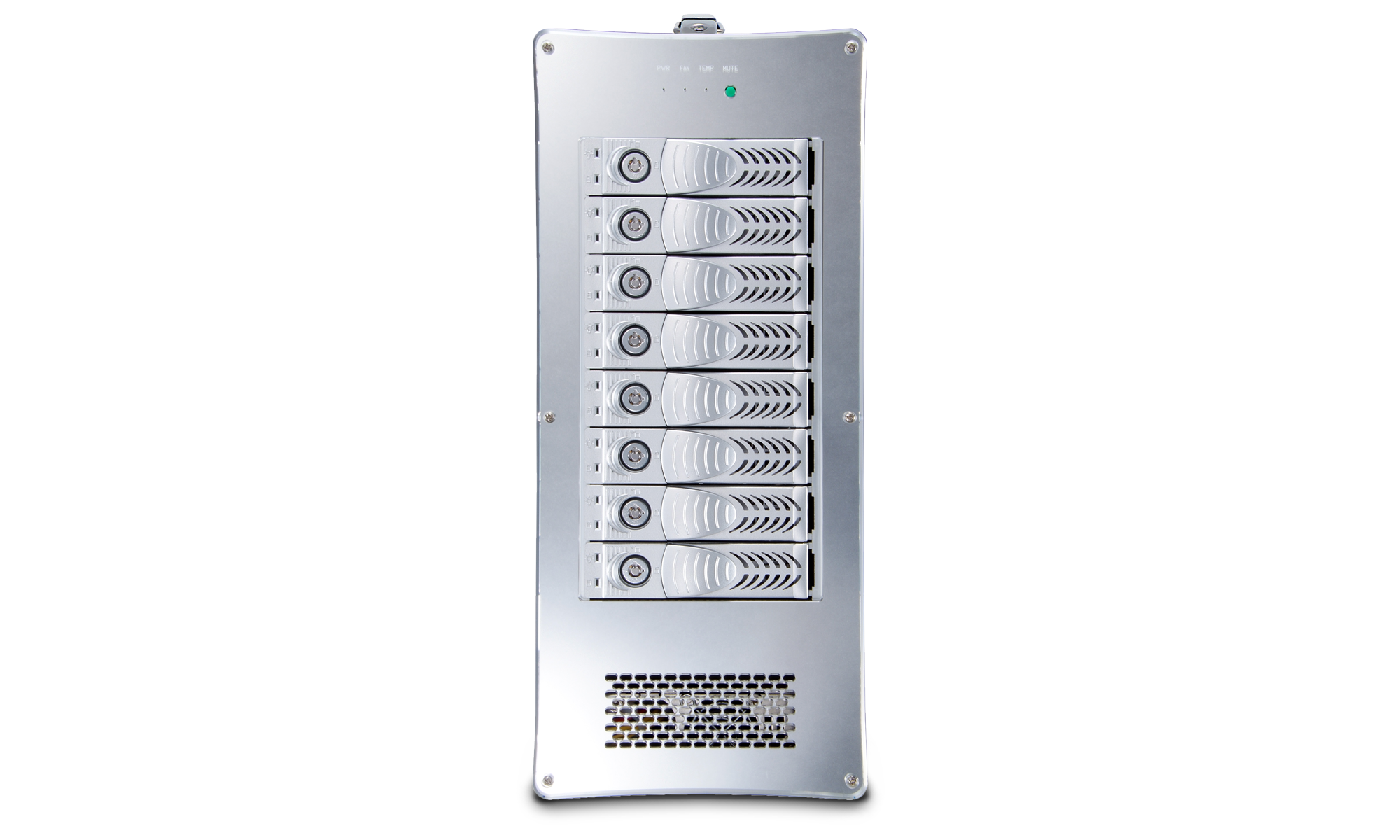

NA762TB3前方設計有8個Tray盤，每個Tray盤可安裝高達10TB的超大容量硬碟或者高速的SSD，不論容量或速度都是一等一。
※ HDD為選購項目
兩個Thunderbolt™ 3 連接埠，串接更多元。
使用USB-C連接器的Thunderbolt 3，不僅小巧更整合了資料傳輸、影片輸出以及充電的功能。內建兩個Thunderbolt 3連接埠的NA762TB3除了1個連接上游主機外，另一個支援Thunderbolt 3菊鏈式串接至6個 Thunderbolt周邊設備的功能還包含1個5K或2個4K UHD螢幕，並且能支援USB 3.1 Gen 2 (10Gbps)。
相同的Tray 功能更多。
NA762TB3 的8個Tray盤都能夠安裝3.5吋硬碟、2.5吋HDD或者2.5吋的SSD，提供使用者在容量或速度的最佳應用彈性。
最佳通風氣流設計。

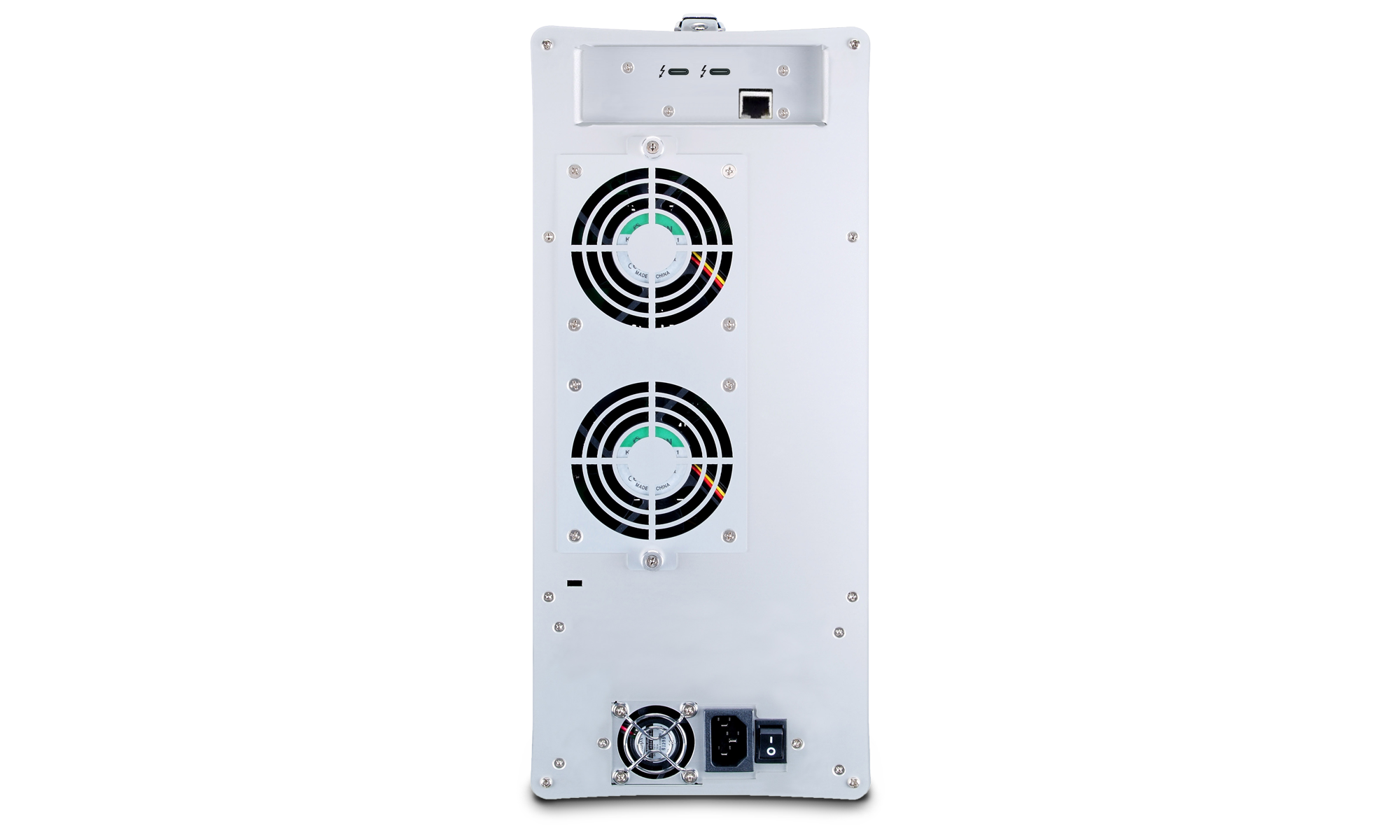

內建兩個8 x 8 x 2.5公分的大風扇，藉由優化磁碟背板通風孔設計讓風扇能順暢將硬碟熱氣經由前方冷空氣一路帶往後方排出。外加可調式風速功能讓使用者能夠在低躁音與適當溫度中找到一個最佳平衡點。
通過Apple®認證，適用於各式Thunderbolt介面的Mac。
Netstor的8 bay桌機產品已經通過Apple®認證，經由完整的測試將可適用於各式的Thunderbolt 3介面的Mac或者Thunderbolt 2 的Mac(註: Thunderbolt2 Mac將需要額外購買Apple® 的轉接器)
高品質真正40Gbps 的2米長度主動式Thunderbolt 3 連接線。
2-Meter 40Gbps Activecable
濰進科技不惜成本只為考量使用者的方便，隨貨附上一條同時通過Apple跟Intel認證的真正40Gbps並且是2米長度的主動式Thunderbolt3 cable，兩公尺長度讓使用者在調整擺放儲存設備位置時更具彈性。
上述內容所提到的Apple、Mac mini屬於Apple Inc. 在美國及各國的版權所有。
詳細規格
Specifications
| |
NA762TB3 |
| Host Interface |
- Thunderbolt™3 (USB-C Interface, 相容於 Thunderbolt™4主機)
- 40Gbps High Bandwidth
|
| Controller & RAID Feature |
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
|
| Storage |
- Supports up to 8 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Stylish Aluminum Housing with Solid Metal Structure
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
|
| Monitors/Indicators |
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
|
| Fan Cooler |
- Two 80x 80x 25mm
- Hot-Swappable
|
| Power Supply |
- Server-grade 300W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
|
| Environmental Requirements |
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
|
| Dimension |
- 231(D) x 156(W) x 365(H) mm
- 9.1(D) x 6.1(W) x 14.4(H) inch
|
| Operating System |
- Mac OS X 10.12.3 above (支援 M1, M1 Pro, M1 Max, and M1 Ultra or Intel)
- Windows 10/8
|
| Scalibility |
- Thunderbolt3 port for daisy-chain up to 6 devices
|
| 出貨包裝內容物 |
機台本體 x 1
硬碟Tray盤 x 8 (已安裝於機台本體上)
Thunderbolt3-40Gbps 傳輸線 x 1 (2米長)
硬碟固定座螺絲 x 32
硬碟鎖鑰匙 x 2
電源線 x 1 |
Host Interface
- Thunderbolt™3, USB-C Interface
- 40Gbps High Bandwidth
Controller & RAID Feature
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
Storage
- Supports up to 8 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Stylish Aluminum Housing with Solid Metal Structure
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
Monitors/Indicators
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
Fan Cooler
- Two 80x 80x 25mm
- Hot-Swappable
Power Supply
- Server-grade 300W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
Environmental Requirements
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
Dimension
- 231(D) x 156(W) x 365(H) mm
- 9.1(D) x 6.1(W) x 14.4(H) inch
Operating System
- Mac OS X 10.12.3 above
- Windows 10/8
Scalibility
- Thunderbolt3 port for daisy-chain up to 6 devices
出貨包裝內容物
機台本體 x 1
硬碟Tray盤 x 8 (已安裝於機台本體上)
Thunderbolt3-40Gbps 傳輸線 x 1 (2米長)
硬碟固定座螺絲 x 32
硬碟鎖鑰匙 x 2
電源線 x 1
Accessories
| Model No. |
Description |
| NA762TB3 |
Desktop 8 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 300W Power Supply, One 2 meter Thunderbolt3 cable |
| ANNA920C0450 |
Silver Color Short Tray for NA762TB3 |
Model No. - NA762TB3
Desktop 8 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 300W Power Supply, One 2 meter Thunderbolt3 cable
ANNA920C0450
Silver Color Short Tray for NA762TB3
