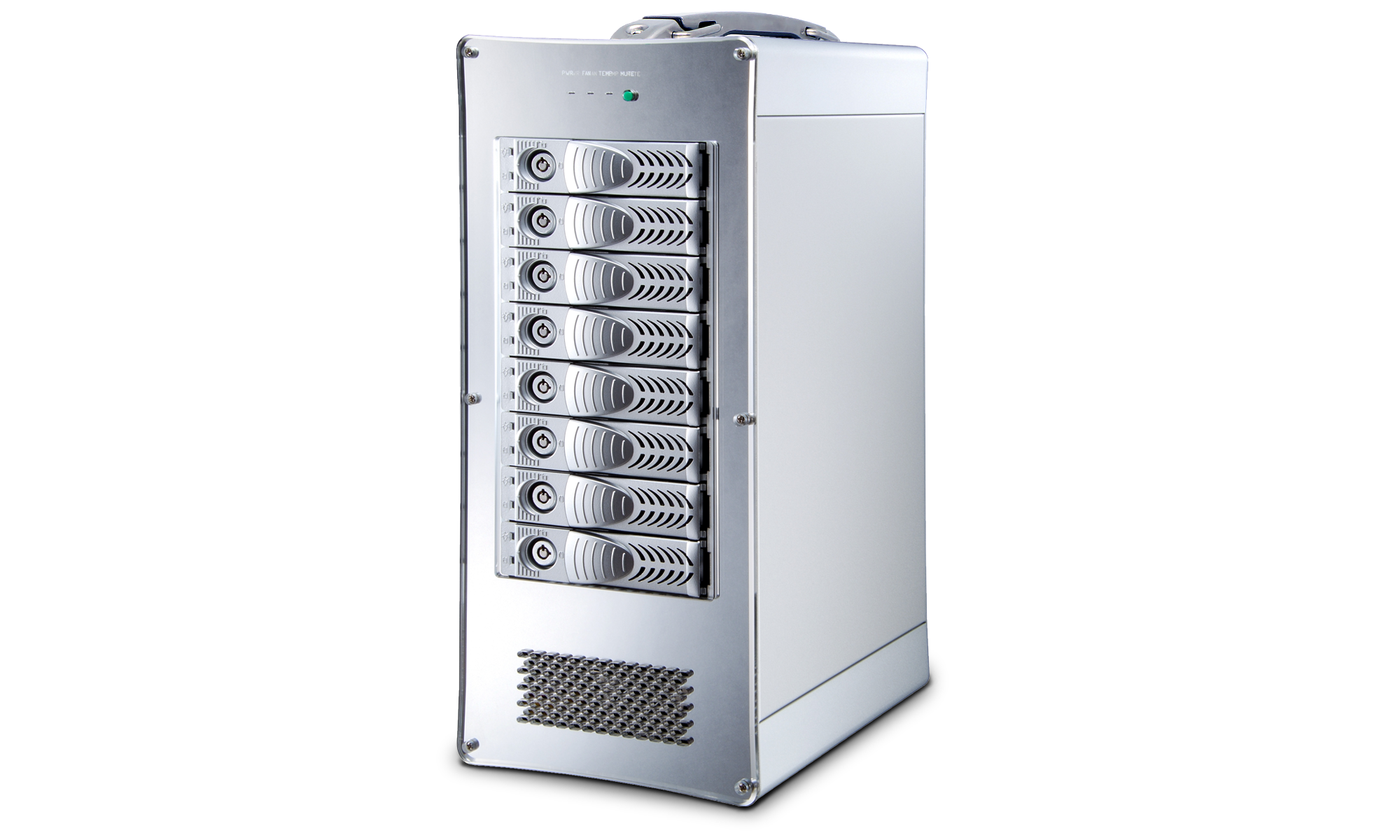

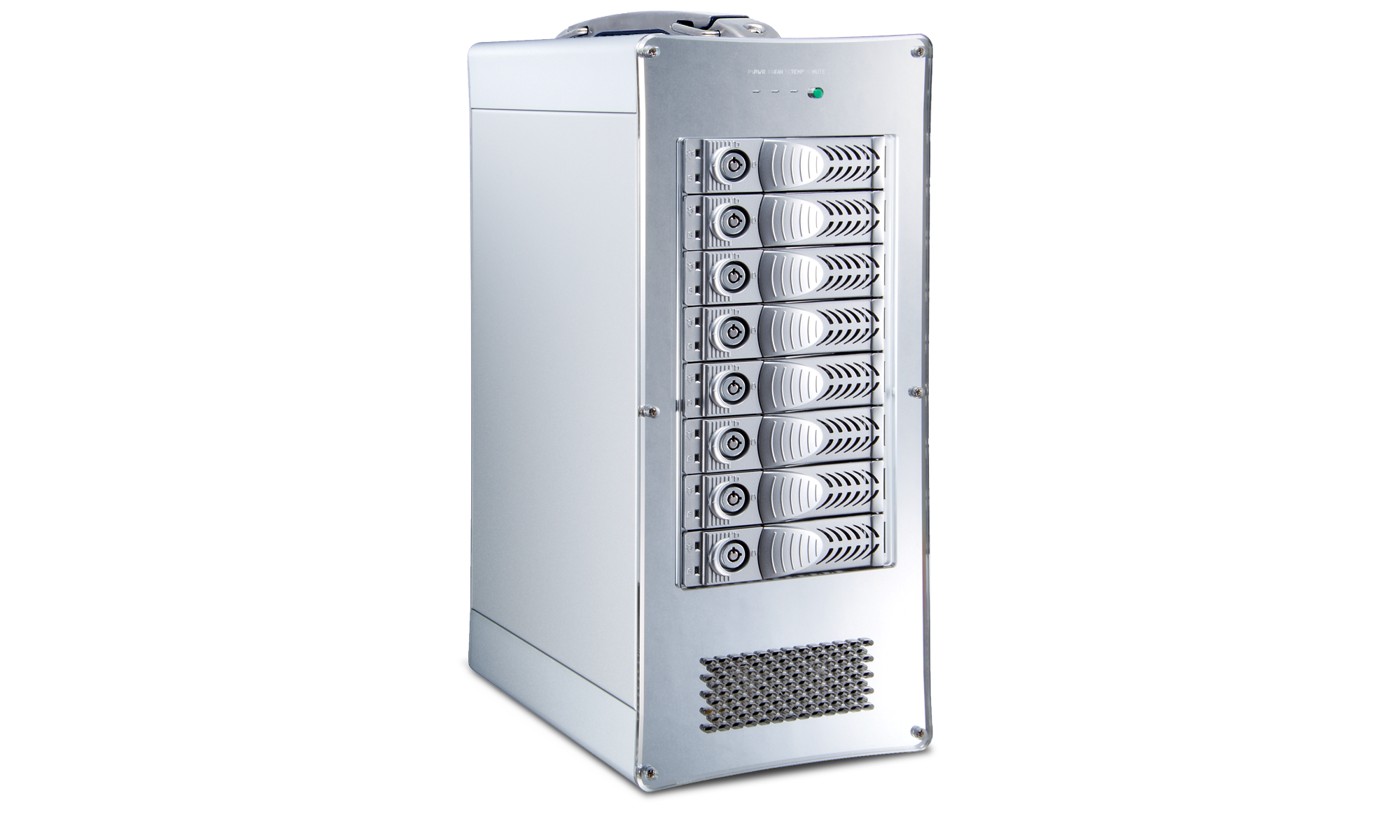

NA762A-G3
Desktop 8 bay PCIe to SAS/SATA RAID Subsystem, Built-in high performance hardware RAID card
Overview
Uncompromised Hardware RAID for the 4K Editing Workflow
Built-in hardware RAID controller providing uncompromised hardware RAID levels including RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 in favor of the 4K video editing and post production workflows with the maximum data protection and the ultimate performances.
32 Gbps Ultra High Bandwidth – PCIe Gen3 x4
An ultra fast, external PCIe 3.0 x4 interface 32 Gbps has been thoughtfully designed for the Netstor desktop storage enclosure to allow the unit to be kept at the highest, full performance and achievements of up to 3200 MB per second in support of the Ultra HD editing workflow.
Drive Tray Supporting both 2.5” SSD and 3.5” HDD
The drive tray from the PCI Express 3.0 desktop storage has been considerately created to work with both 2.5” solid-state drive and 3.5" hard disk drive for the varied professionals and developers with diverse demands on speed or immense storage capacity.
Flagship PCIe 3.0 Desktop Storage Capacity and Performance
Designed 8-bay desktop storage with support of up to eight 12G/6Gbps SAS high-performance and 6G/3Gbps SATA high-capacity hard drives, delivering the extraordinary, optimized performances and achievements.
* Performance may vary based on system hardware & configuration.
Excellent Airflow Ventilation Framework

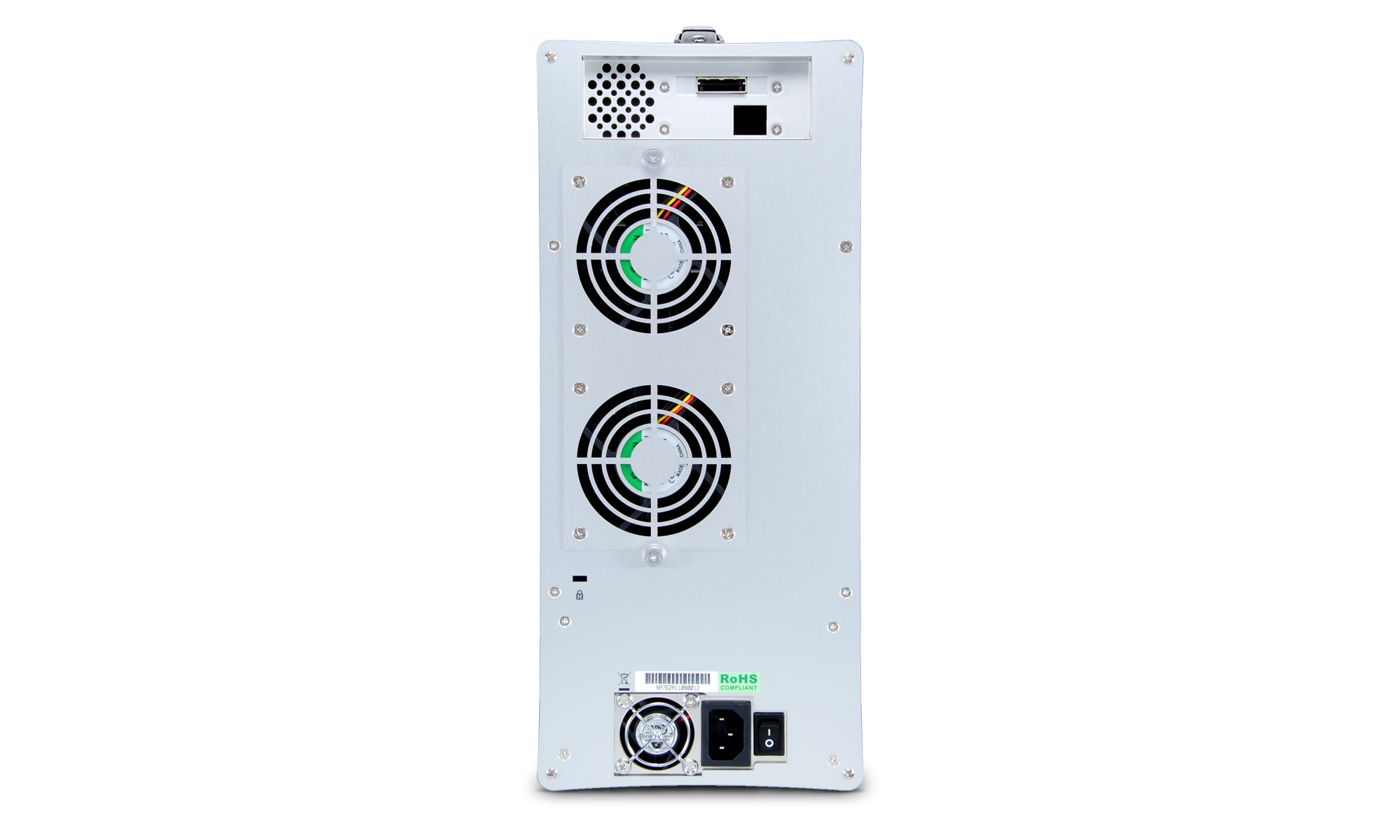

Carrying two rear hot-swappable 8x8 cm ultra quiet cooling fan modules that provide the best airflow ventilation ever and ensure that all types of hard drives within are kept at the moderate temperature for production and work.
Multi Platform Support
The NA762A-G3 is created to support all kinds of computer operating system platforms in favor of the varied operations and applications. Thus the Netstor 8-bay PCI-E 3.0 storage does genuinely work with all computers/workstations having Windows/Linux O.S. and Mac Pro 2019 running macOS.
All other product names mentioned in the content are trademarks or registered trademarks of their respective companies in the U.S. and other countries.
Specs
Specifications
| |
NA762A-G3 |
| Host Interface |
- Up to 32Gb/s external PCIe 3.0 x4
|
| Controller & RAID Feature |
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
|
| Storage |
- Supports up to 8 SAS 12G/6G or SATA 6Gb/s 3.5" HDDs (HDDs sold separately.)
- Stylish Aluminum Housing with Solid Metal Structure
- Individual Key lock of each HDD tray for physical security
|
| Monitors/Indicators |
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
|
| Fan Cooler |
- Two 80x 80x 25mm
- Hot-Swappable
|
| Power Supply |
- Server-grade 300W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
|
| Environmental Requirements |
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
|
| Dimension |
- 231(D) x 156(W) x 365(H) mm
- 9.1(D) x 6.1(W) x 14.4(H) inch
|
| Operating System |
- Mac OS X 10.12.3 above
- Windows 10/8
- Linux
|
| Package Content |
Enclosure x 1
HDD Tray x 8 (installed)
PCIe cable x 1 (1.5m)
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
Power Cord x 1 |
Host Interface
- Up to 32Gb/s external PCIe 3.0 x4
Controller & RAID Feature
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
Storage
- Supports up to 8 SAS 12G/6G or SATA 6Gb/s 3.5" HDDs (HDDs sold separately.)
- Stylish Aluminum Housing with Solid Metal Structure
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
Monitors/Indicators
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
Fan Cooler
- Two 80x 80x 25mm
- Hot-Swappable
Power Supply
- Server-grade 300W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
Environmental Requirements
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
Dimension
- 231(D) x 156(W) x 365(H) mm
- 9.1(D) x 6.1(W) x 14.4(H) inch
Operating System
- Mac OS X 10.12.3 above
- Windows 10/8
- Linux
Package Content
Enclosure x 1
HDD Tray x 8 (installed)
PCIe cable x 1 (1.5m)
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
Power Cord x 1
